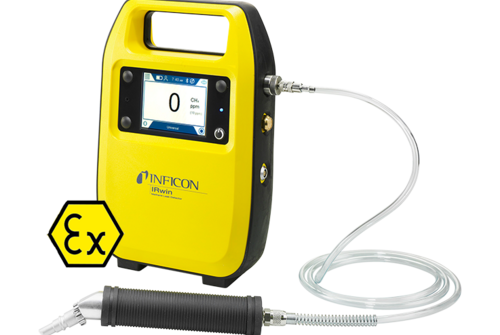

IRwin® Methane Leak Detector is an innovative, portable natural gas detector for easy gas pipe survey and gas leak detection. It is developed in accordance with many national directives, such as the DVGW (Deutscher Verband des Gas- und Wasserfaches) directive.

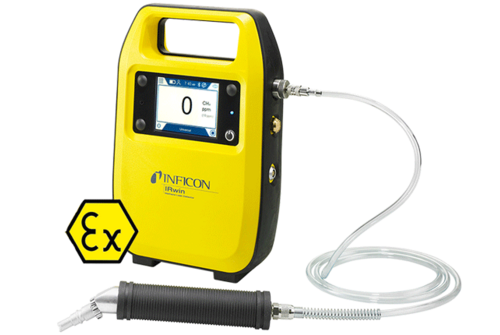

The IRwin SX-models are certified for use in Zone 0, classification Ex II 1G, Ex ia IIC T3 Ga, Intrinsically Safe Class I, Division 1, Groups A, B, C and D, T3.

The integrated proprietary infrared sensor system (patents pending) has a fast reaction and short recovery time. The system prevents false leak alarms and ensures correct and fast leak evaluation. The specially developed Gas Chromatograph (GC) and IR-sensor combination allows fast distinction between swamp gas and natural gas. The IRwin GC gives fast test results, even at low ethane concentrations, from 1000 ppm methane leaks. IRwin is able to measure methane according to the traditional operating modes required by DVGW G 465-4, such as "Inspection above-ground" and "Measuring bar holes". The range is from 1 ppm to 100 Vol. %.

IRwin Methane Leak Detector - together with an innovative probe system specially designed for natural gas leak detection - allows for easy and effective survey of gas pipelines.

Do you want to display your IRwin survey on a map? Upload your own GPS file here

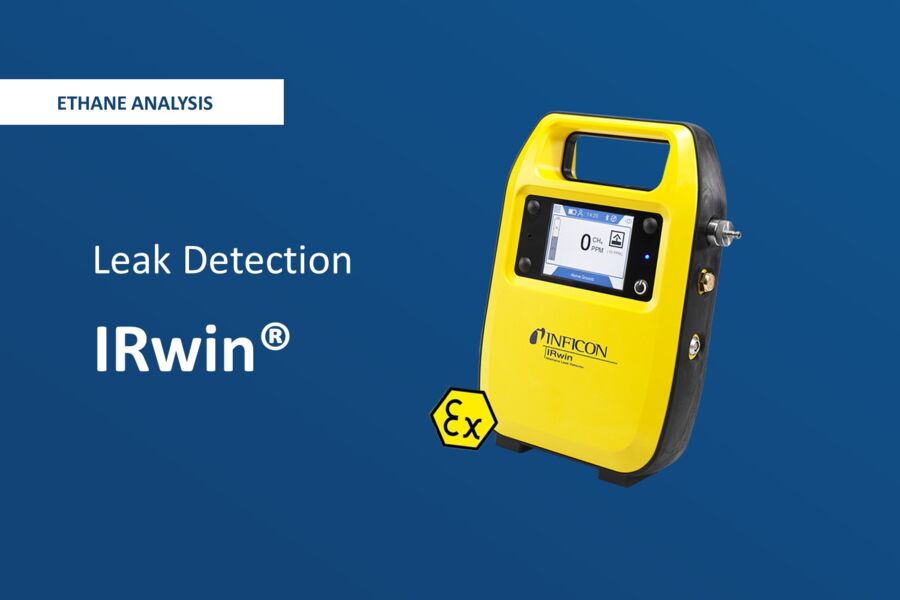

IRwin_Leak Detector_Video-Thumbnail

Advantages

  • Methane-specific measurement with IR-technology
  • Distinction between natural gas and marsh gas with GC and IR-sensor
  • Fast Ethane and Propane Analysis
  • High sensitivity, quick reaction and short recovery time thanks to the integrated proprietary IR-sensor system
  • Weatherproof IP54
  • Measurements possible even in tough environments thanks to its robust housing

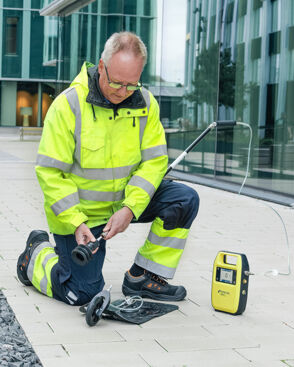

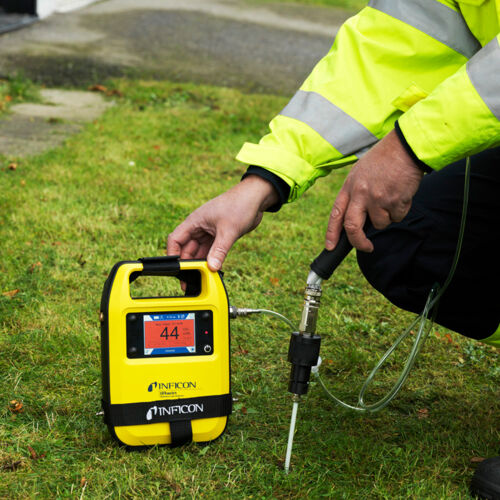

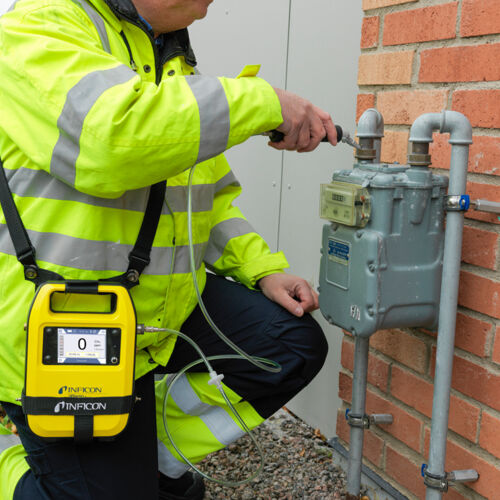

  • Pinpointing leaks with a minimum of bar holes
  • Integrated GPS chip allows reliable location tracking
  • Wireless communication system for easy data transfer
  • Light and easy to move around for maximum ergonomics
  • Modular, light and innovative accessories
  • Fast charging - 1 h gives 4 h operation

Typical Applications

  • Natural gas pipelines survey
  • Emergency situations

Specifications

IRwin S
IRwin SX
IRwin SXT
IRwin SXG
IRwin SXGT
Ex classification-
Sensitivity1 ppm to 100% CH4
Instrument Weight1.4 kg (3 lb.)
Ex classificationEx II 1G, Ex ia IIC T3 Ga, Intrinsically safe Class I, Division 1, Groups A, B, C and D, T3
Sensitivity1 ppm to 100% CH4
Instrument Weight1.6 kg (3.5 lb.)
Ex classificationEx II 1G, Ex ia IIC T3 Ga, Intrinsically safe Class I, Division 1, Groups A, B, C and D, T3
Sensitivity1 ppm to 100% CH4
Instrument Weight1.6 kg (3.5 lb.)
Ex classificationEx II 1G, Ex ia IIC T3 Ga, Intrinsically safe Class I, Division 1, Groups A, B, C and D, T3
Sensitivity1 ppm to 100% CH4
Instrument Weight1.6 kg (3.5 lb.)
Ex classificationEx II 1G, Ex ia IIC T3 Ga, Intrinsically safe Class I, Division 1, Groups A, B, C and D, T3
Sensitivity1 ppm to 100% CH4
Instrument Weight1.6 kg (3.5 lb.)
Part Number
Accessories
Spare Parts
IRwin S
580-000IRwin S - Methane, Carbon dioxide, Ethane* (*For swamp gas analysis only)
580-712IRwin Accessories Kit
580-240IRwin Compact Kit

IRwin SX
580-010IRwin SX - Methane, Carbon dioxide, Ethane*, Propane**, Buthane**
(*For swamp gas analysis only, **Replaces Methane through settings in Ex-mode)
580-712IRwin Accessories Kit
580-240IRwin Compact Kit

IRwin SXG
580-020IRwin SXG - Methane, Carbon dioxide, Ethane, Propane, Butane
580-712IRwin Accessories Kit
580-240IRwin Compact Kit

IRwin SXGT
580-030IRwin SXGT - Methane, Carbon dioxide, Ethane, Propane, Butane, Oxygen, Hydrogen Sulfide, Carbon monoxide
580-712IRwin Accessories Kit
580-240IRwin Compact Kit

IRwin SXT
580-015IRwin SXT - Methane, Carbon dioxide, Oxygen, Hydrogen Sulfide, Carbon monoxide, Ethane*, Propane**, Buthane**
(*For swamp gas analysis only, **Replaces Methane through settings in Ex-mode)
580-712IRwin Accessories Kit
580-240IRwin Compact Kit
IRwin S
580-100Hand probe
580-110Hand Probe Flexible Extension
580-115Bar Hole Probe
580-120Swan Neck
580-140Short Rod, 600mm
580-150Rod
580-160Extension Rod, 150mm
580-170Compact Rod, 330+330mm
580-210Mono-wheeler Carpet Probe (patent pending)
580-211Carpet
580-300Bell Probe
580-301Bell
580-305Flexi Bell
580-405Harness IRwin
580-450Transport Case
581-314Transport Case for Compact Kit

IRwin SX
580-100Hand probe
580-110Hand Probe Flexible Extension
580-115Bar Hole Probe
580-120Swan Neck
580-140Short Rod, 600mm
580-150Rod
580-160Extension Rod, 150mm
580-170Compact Rod, 330+330mm
580-210Mono-wheeler Carpet Probe (patent pending)
580-211Carpet
580-300Bell Probe
580-301Bell
580-305Flexi Bell
580-405Harness IRwin
580-450Transport Case
581-314Transport Case for Compact Kit

IRwin SXT
580-100Hand probe
580-110Hand Probe Flexible Extension
580-115Bar Hole Probe
580-120Swan Neck
580-140Short Rod, 600mm
580-150Rod
580-160Extension Rod, 150mm
580-170Compact Rod, 330+330mm
580-210Mono-wheeler Carpet Probe (patent pending)
580-211Carpet
580-301Bell
580-305Flexi Bell
580-300Bell Probe
580-405Harness IRwin
580-450Transport Case
581-314Transport Case for Compact Kit

IRwin SXG
580-100Hand probe
580-110Hand Probe Flexible Extension
580-115Bar Hole Probe
580-120Swan Neck
580-140Short Rod, 600mm
580-150Rod
580-160Extension Rod, 150mm
580-170Compact Rod, 330+330mm
580-210Mono-wheeler Carpet Probe (patent pending)
580-211Carpet
580-300Bell Probe
580-301Bell
580-305Flexi Bell
580-405Harness IRwin
580-450Transport Case
581-314Transport Case for Compact Kit

IRwin SXGT
580-100Hand probe
580-110Hand Probe Flexible Extension
580-115Bar Hole Probe
580-120Swan Neck
580-140Short Rod, 600mm
580-150Rod
580-160Extension Rod, 150mm
580-170Compact Rod, 330+330mm
580-210Mono-wheeler Carpet Probe (patent pending)
580-211Carpet
580-300Bell Probe
580-301Bell
580-305Flexi Bell
580-405Harness IRwin
580-450Transport Case
581-314Transport Case for Compact Kit
IRwin S
580-230On Demand Flow Regulator (ODFR) 5/8x18 UNF
580-235On Demand Flow Regulator (ODFR) 7/16x28 UNEF
580-220Extension Connector
580-700Filter-kit
580-604EX Certified IRwin Charging Adapter
580-605Charger for IRwin, all models, 100-240V
581-167Battery (replaceable at authorized service centers only)
580-701Mat repair kit

IRwin SX
580-230On Demand Flow Regulator (ODFR) 5/8x18 UNF
580-235On Demand Flow Regulator (ODFR) 7/16x28 UNEF
580-220Extension Connector
580-700Filter-kit
580-604EX Certified IRwin Charging Adapter
580-605Charger for IRwin, all models, 100-240V
591-361Charger cable for car, 12V
581-167Battery (replaceable at authorized service centers only)
580-701Mat repair kit

IRwin SXT
580-230On Demand Flow Regulator (ODFR) 5/8x18 UNF
580-235On Demand Flow Regulator (ODFR) 7/16x28 UNEF
580-220Extension Connector
580-700Filter-kit
580-604EX Certified IRwin Charging Adapter
580-605Charger for IRwin, all models, 100-240V
591-361Charger cable for car, 12V
581-167Battery (replaceable at authorized service centers only)
580-701Mat repair kit

IRwin SXG
580-230On Demand Flow Regulator (ODFR) 5/8x18 UNF
580-235On Demand Flow Regulator (ODFR) 7/16x28 UNEF
580-220Extension Connector
580-700Filter-kit
580-604EX Certified IRwin Charging Adapter
580-605Charger for IRwin, all models, 100-240V
591-361Charger cable for car, 12V
581-167Battery (replaceable at authorized service centers only)
580-701Mat repair kit

IRwin SXGT
580-230On Demand Flow Regulator (ODFR) 5/8x18 UNF
580-235On Demand Flow Regulator (ODFR) 7/16x28 UNEF
580-220Extension Connector
580-700Filter-kit
580-604EX Certified IRwin Charging Adapter
580-605Charger for IRwin, all models, 100-240V
591-361Charger cable for car, 12V
581-167Battery (replaceable at authorized service centers only)
580-701Mat repair kit
