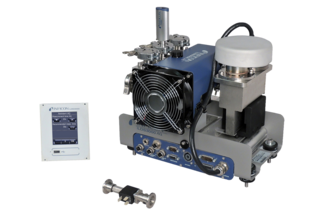

Helium Leak Detector

LDS3000

ULTRATEST Technology™

Compact Design for Highest Performance

Highest accuracy and repeatability paired with shortest cycle times make the LDS3000 the number one choice for vacuum leak testing systems. It boasts extreme compactness, ensuring seamless integration with minimal installation efforts and space requirements. Enhance your setup with a wide range of modern fieldbus systems to further optimize your operations.

The LDS3000 is also available as LDS3000 AQ for the use in accumulation systems. The product family of the LDS3000 is the most versatile solution for automated testing sytems.

INFICON also offers a wide variety of calibrated test leaks for almost every application. To simplify and speed up the order process, please use the Order Form for customized calibrated leaks for testing system.

EcoBoost Function: Faster and More Efficient at Lower Cost

The unique and patented EcoBoost feature enables the LDS3000 to detect smallest leaks, even on high and decreasing tracer gas background levels. Due to excellent instrument quality leading to extremely precise, repeatable and linear measurements, an intelligent algorithm predicts decreasing tracer gas backgrounds with high accuracy.

With EcoBoost, the LDS3000 can detect leaks early in the testing cycle and without the risk of missing small leaks. EcoBoost can also allow for the use of smaller, less energy consuming pumps and reduced helium consumption.

Features

Compact design allows individualized, custom integration into leak detection systems
Communicative diversity through a wide range of analog and digital interfaces
Considerably improved cabling
The new, patented routine allows calibration of the LDS3000 leak detector within 20 seconds.

Advantages

Compact design for quick and easy integration
Reliable performance
Highest accuracy and repeatability in the market
Marke t leader in cycle time: Rapid detection of leak rates up to 1 x 10^-11 mbar l/s in less than 1 second
PROFIBUS interface for simplified connectivity and interoperability, remote access and high data transfer efficiency.
Digital interfaces, including RS232, RS485, USB
Wide range of analog interfaces
Minimal downtimes and reduced maintenance requirements
Fast calibration times, typically around 20 seconds
Optional touch screen display

Typical Applications

Evaporators, condensers, compressors
Battery cell housings
Battery pack trays and lids
Airbag gas generators and ignitors
Valves
Brake lines, fuel lines
Hydraulic components
Combustion Engines

Specifications

Min. detectable leak rate for Helium "ULTRA"-Mode	mbar·l/s	<1E-11
Min. detectable leak rate for Helium "FINE"-Mode	mbar·l/s	<5E-11
Min. detectable leak rate for Helium "GROSS"-Mode	mbar·l/s	<1E-9
Min. detectable leak rate for Helium "Sniffer"-Mode	mbar·l/s	<1E-7
Measuring units		mbar·l/s, Pa•m³/s, Atm cm³, g/a, ppm
Max. inlet pressure "ULTRA"-Mode	mbar	0.2
Max. inlet pressure "FINE"-Mode	mbar	0.9
Max. inlet pressure "GROSS"-Mode	mbar	18
Response time	s	<1
Digital inputs/outputs (if used with IO1000 Modul)		10 inputs / 8 outputs
Control input	V	max. 35 (PLC compatibel)
Ion Source		2 yttrium/iridium long-life cathodes (3 years guarantee)
lin/log recorder output	V	0-10
Serial interface (with IO1000 / BM1000)		RS232, RS485, Fieldbus
Dimensions (L x W x H)	mm in	330 x 240 x 280 13 x 9.45 x 11.1
Ambient temperature range	C F	10 - 45 50-113
Vacuum connections		DN 16 KF, DN 25 KF
For the operation of the LDS3000 leak detector you need as basis one data cable and a IO1000 Module or BM1000-Modul

Ordering Information

Part Number

Accessories

Spare Parts

560-300	LDS3000 Leak Detector (additionally 1 data cable and a I/O-Module or BM1000-Module needed)
560-310	I/O 1000 module
560-315	BM1000 PROFIBUS module
560-316	BM1000 PROFINET IO module
560-317	BM1000 DeviceNet module
560-318	BM1000 Ethernet/IP module
560-320	CU1000 Control unit (additionall 1 data cable needed)
560-332	Data Cable 2 m
560-335	Data Cable 5 m
560-340	Data Cable 10 m

Part Number	Description

14511	Pump module, D4B, AC motor, 230 V
14520	Sniffer valve
14521	Sniffer line, 3m
14522	Sniffer line, 5m
14523	Sniffer line, 10m
560-319	XL Sniffer Adapter
560-320	CU1000 Control unit (additionall 1 data cable needed)
560-323	Internal Helium Test Leak TL7 for LDS3000
560-324	DIN Rail Power supply 24v, 10A
560-330	Membrane pump, 4-stages ( Recommendet to use with XL Sniffer Adapter)

Part Number	Description

20004642	Replacement Sniffer tip, 400 mm
