Battery

From electrode production to end-of-line testing


Quality control for your complete value chain

Around the globe, the battery industry is expanding production capacities. At the same time, it is continuously improving chemistry and production processes. INFICON helps you manage your rapidly changing requirements - from electrode production to end-of-line testing of fully assembled battery cells. Whether your batteries are used in electric vehicles, mobile devices, power tools, medical devices, or as energy storage devices, such as buffers for solar power generation.

INFICON leak detectors help you to

  • Reduce safety risks
  • Reduce scrap and waste
  • Increase your productivity
  • Ensure higher process efficiency
  • Deliver higher quality products with optimized life time

INFICON vacuum gauges allow you to

  • Save energy during drying and evacuation processes
  • Increase your productivity
  • Ensure higher process efficiency
  • Ensure high uptime of your production tools

INFICON residual gas analyzers (RGAs) ensure to

  • Achieve high process reliability
  • Reduce scrap and waste
  • Ensure higher process efficiency
  • Ship consistently high product quality

INFICON Smart Manufacturing software supports you to

  • Continuously improve your processes, your product quality and your yield
  • Increase overall output by maximizing capacity and optimizing equipment and consumable usage
LP_whitepaper_battery_EN LP_whitepaper_battery_EN Mask LP_whitepaper_battery_EN Ellipse

Download Free Whitepaper

Get our White Paper that includes 24 tips to help you reach your goals and improve your battery production.
Download now

INFICON equipment for Lithium-Ion Batteries (LIBs)

Lithium-ion batteries (LIBs) are widely used in the automotive industry, as well as in communications, computer and consumer devices, and medical equipment. INFICON offers quality control products for many steps of the production process.

To reduce material scrap and maximize the utilization of your production equipment, hard-shell battery cells (or their components) should be tested for leakage before filling with electrolyte with the LDS3000 vacuum leak detector. INFICON vacuum gauges are used to monitor pressure during vacuum drying and evacuation of cells before filling.

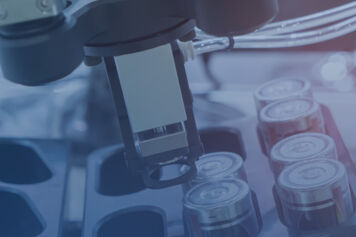

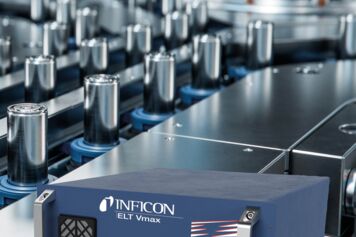

For leak testing fully assembled battery cells filled with electrolyte, the ELT3000 PLUS  and ELT Vmax battery leak detectors use a unique, patented test method to directly detect electrolyte leakage from all LIBs after filling, whether they are round, coin, prismatic or pouch cells. It can be used prior to formation and aging to reduce the risk of formatting potentially leaky cells. It can also serve as a true end-of-line test after formation and aging. This also allows you to detect potential leaks caused by handling particularly fragile pouch cells. Pouch cells should also be tested after formation to also detect final seals after degassing. For leak testing of pouch cells, INFICON offers you a patented, flexible test chamber that ensures maximum protection of the fragile construction during leak testing. You can use the ELT3000 PLUS leak detector as a stand-alone device for engineering groups. For easy integration into high-speed production lines, we offer the ELT Vmax.

INFICON equipment for Sodium-Ion Batteries

As lithium becomes a rare resource, sodium-ion batteries are considered as an alternative. The production process for sodium-ion batteries is very similar to that for lithium-ion batteries, and the chemistry uses the same group of solvents for the electrolyte. The leak testing process for sodium-ion batteries also has many similarities to the leak testing process for lithium-ion batteries. Hard-shell batteries are typically tested with helium and a vacuum helium leak detector such as the LDS3000 before being filled with electrolyte. After filling with electrolyte, you can directly detect leaking electrolyte solvent with the ELT3000 PLUS and ELT Vmax battery leak detectors. Especially for pouch cells, leak testing before formation and aging can be beneficial. Monitoring drying processes is even more critical than for LIBs, and INFICON vacuum gauges can be a great contributor to making these processes safe and reliable.

INFICON equipment for Solid-State Batteries

Solid-state batteries have attracted a lot of interest, especially in the automotive industry, because they are considered safer. This is because they use a solid electrolyte and do not contain liquid and flammable electrolytes. In the longer term, solid-state batteries are also expected to offer higher energy densities, longer ranges and shorter charging times. Thin film deposition processes such as CVD, PVD or aerosol deposition are needed to produce the interconnect layers, and INFICON can support you in these areas.

For the high frequency sputtering step, INFICON's Quartz crystal monitoring system (sensor and controller) provides accurate in-situ measurement of cathode and electrolyte layer thickness. This additional safety feature combats variations between different substrates. It ensures repeatability from run to run, ultimately maintaining the same deposited layer thickness.

For thermal evaporation, in addition to accurately measuring the anode film thickness, our QCM system can also measure critical parameters such as the deposition rate for the anode and use this as feedback to control the high voltage supply to the e-beam gun. This dual combination of thickness and rate control provides unprecedented real-time control and quality.

Electrode production, in particular, must often be performed under an inert atmosphere. In addition to QCM sensors, INFICON also offers Transpector residual gas analyzers for air leak detection and contamination monitoring, as well as real-time process monitoring. This helps you reduce scrap and increase process throughput and yield. Similarly, our RGAs play an important role in ensuring inert atmosphere, monitoring gas supply and checking gas purity.
