The SQM-160 uses proven INFICON quartz crystal sensor technology to measure rate and thickness in thin film deposition processes. Two sensor inputs are standard and four additional sensor inputs are optional. Two recorder outputs provide analog rate and thickness signals.

Sensor inputs can be assigned to different materials, averaged for accurate deposition control in large systems, or configured for a dual sensor. The rate sampling mode allows a shuttered sensor to extend sensor life in high rate processes. Rate displays of 0.1Å/s or 0.01Å/s are user selectable.

In addition, Frequency or Mass displays can be selected. Four relay outputs allow the SQM-160 to control source or sensor shutters, signal time and thickness setpoints, and signal crystal failure. Digital inputs allow external signals to start/stop and zero readings.

Features

  • Two measurement channels standard, an additional four optional
  • Analog outputs for rate/thickness recording
  • High resolution option: 0.03Hz at 10 readings/sec
  • RS-232 standard, USB or Ethernet optional

Specifications

SQM-160 Standard Resolution
SQM-160 High Resolution
QCM Sensor InputsStandard: 2; optional: 4
Measurement Frequency RangeAdjustable:
1.0 MHz minimum
6.5 MHz maximum
Thickness and rate resolution/measurement (1)± 0.37 Å
Stored Films99
Digital Inputs/OutputsFour inputs, four relay outputs

(1)Tooling/density = 100/1, fundamental frequency = 6 MHz, 0.10 s measurement interval
QCM Sensor InputsStandard: 2; optional: 4
Measurement Frequency RangeAdjustable:
1.0 MHz minimum
6.5 MHz maximum
Thickness and rate resolution/measurement (1)± 0.037 Å
Stored Films99
Digital Inputs/OutputsFour inputs, four relay outputs

(1)Tooling/density = 100/1, fundamental frequency = 6 MHz, 0.10 s measurement interval

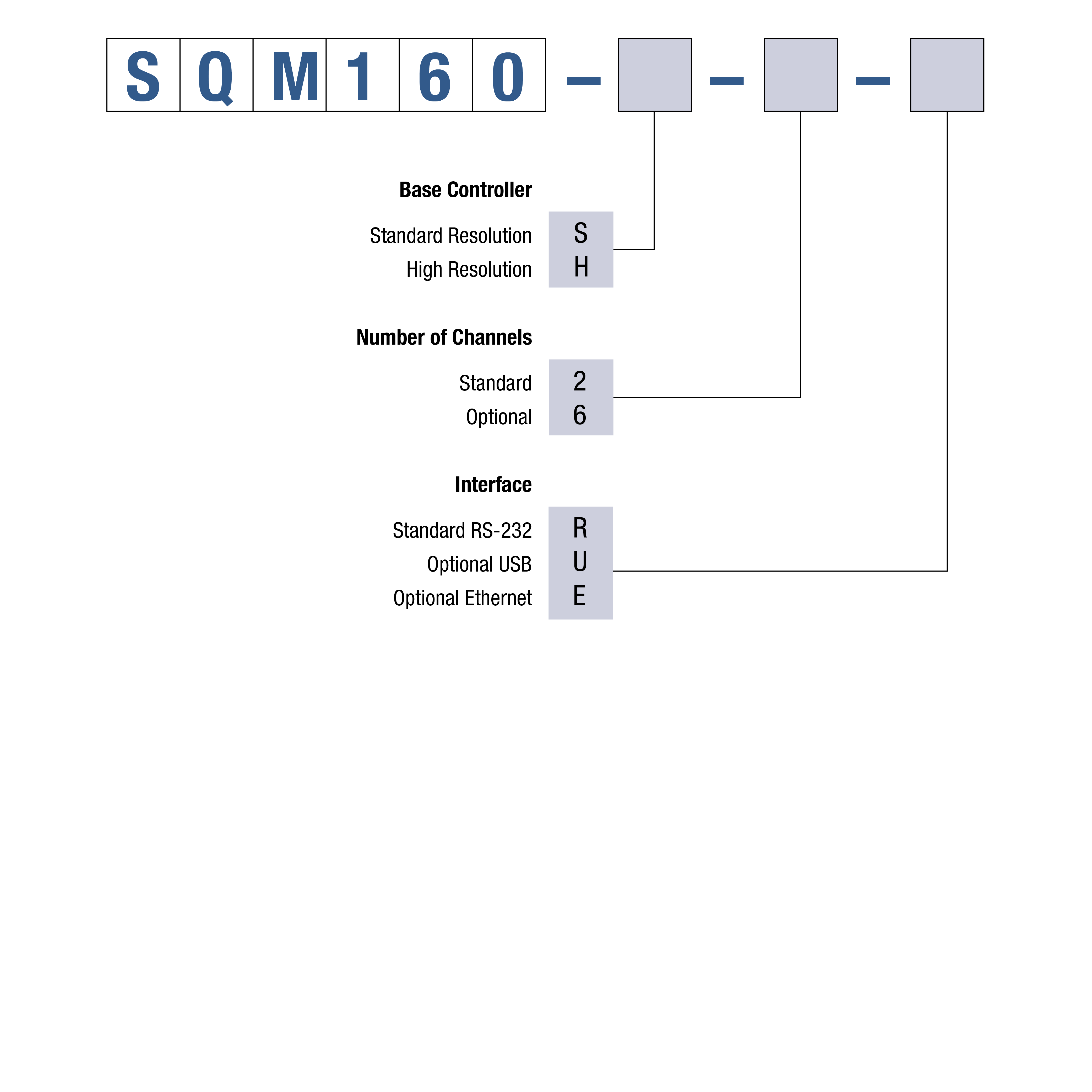

Part Number

Accessories

Accessories
Replacement Parts
Consumables
Part NumberDescription
782-900-01419 in. Rack Mount Kit for two SQM-160 or CI-100 instruments
782-502-096-G1USB option card
782-502-097-G1Ethernet option card

Oscillator kits(Includes oscillator and cables)
783-500-109-103 m (10 ft.) Oscillator Kit - includes OSC-100 oscillator, 15.2 cm (6 in.) BNC cable, and 3 m (10 ft.) BNC cable
783-500-109-257.6 m (25 ft.) Oscillator Kit - includes OSC-100 oscillator, 15.2 cm (6 in.) BNC cable, and 7.6 m (25 ft.) BNC cable
783-500-109-5015.2 m (50 ft.) Oscillator Kit - includes OSC-100 oscillator, 15.2 cm (6 in.) BNC cable, and 15.2 m (50 ft.) BNC cable
783-500-109-7522.8 m (75 ft.) Oscillator Kit - includes OSC-100 oscillator, 15.2 cm (6 in.) BNC cable, and 22.8 m (75 ft.) BNC cable

Oscillator Only(No cables included)
783-500-013-G1OSC-100 oscillator only (no cables)

Cables
782-902-01115.2 cm (6 in.) BNC cable, male/female
782-902-012-103 m (10 ft.) BNC cable, male/male
782-902-012-257.6 m (25 ft.) BNC cable, male/male
782-902-012-5015.2 m (50 ft.) BNC cable, male/male
782-902-012-7522.8 m (75 ft.) BNC cable, male/male
