The Cool Drawer Dual Sensor is designed for use in critical processes where it is desirable to have a second crystal in the vacuum chamber.

Water cooled, cast stainless steel sensor body, two Cool Drawer crystal holders and a pneumatically actuated shutter provide for a rugged sensor head with the extra reliability of a backup crystal. A cleaner, more reliable vacuum system installation is possible as there are no coaxial cables inside the chamber.

Features

  • Dual crystals
  • Cool Drawer crystal holder
  • No internal cables
  • Crystal shutter
  • Available with: CF40 feedthrough and 2.54 cm (1 inch) bolt feedthrough
  • Bakeable if ordered with welded CF40 flange
  • Adjustable length if ordered with compression fittings
  • Sensor/feedthrough combinations available welded to customer specified lengths

Specifications

Cooling waterMinimum water flow of 150 to 200 cm³/min using 1/8 in. O.D. tube, 30°C max. (Do not allow to freeze)
Materials304 stainless steel, ceramic, beryllium nickel
1 in. bolt and compression fitting sealed terminations
TemperatureOperational environment to 300° C with water cooling or 165° C without
Download full specifications

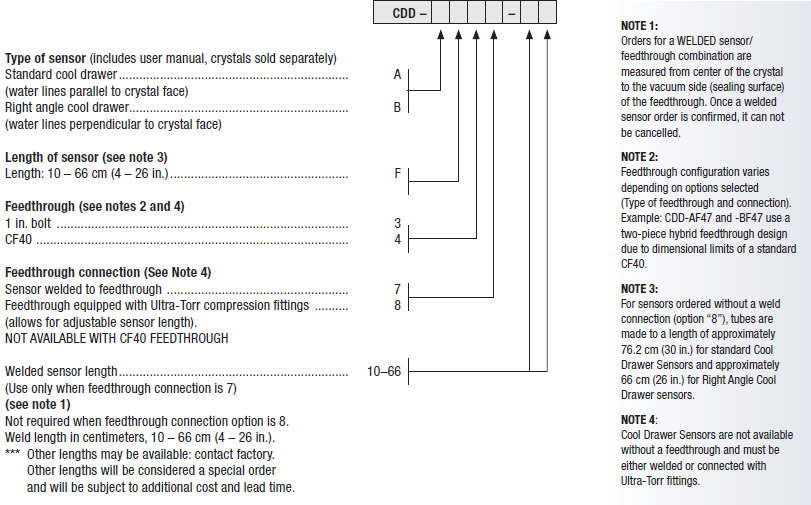

Part Number

Accessories
Consumables
Part NumberDescription
750-420-G1Solenoid Valve, 24V (for use with shuttered and multi-crystal sensors)
NameDescription
Quartz Monitor CrystalsQuartz Monitor Crystals
Part Number

Spare Parts

Part NumberDescription
123259Cool Drawer Sensor Crystal Retainer
123261Cool Drawer sensor Drawer
123260Cool Drawer Sensor Drawer and Retainer Combo
147206-2* Bellows with 35 in. tube
147207Bellows and cover assembly (Includes all parts marked with *)
147401Shutter
147402Link
147403* Actuator
147406* Bellows support
147407* Bellows Cover
147408* Threaded shaft
147411Spacer
147424* Bellows tube
082-026# 2-56 Nut (part of heat shield assembly)
082-064* Lockwasher
084-205* #4-40 x 3/16 Phillips screw
800128#4 Lockwasher
800371Shoulder Screw
800372Washer
800416* 6-32 x 3/16 in. set screw
803313* Spring
123223-2Conduit brazed assembly - short pin
803102O-ring for 5 port adjustable feedthrough
803261Washer for 5 port adjustable feedthrough
