Boosting Semiconductor Yield Through High Precision Leak Detection
In the fast‑moving semiconductor industry, increasing wafer output, reducing scrap, and ensuring stable manufacturing processes are ongoing challenges. Every step of semiconductor production—lithography, etching, deposition, CMP, and packaging—relies on ultra‑clean vacuum environments and precisely controlled gas flows. Even the smallest leak can trigger costly downtime, contaminate sensitive processes, and compromise device performance. Implementing a highly accurate and reliable leak detection strategy has become essential for achieving higher yield, greater process stability, and improved operational efficiency across modern fabs.
Why Leak Detection Drives Semiconductor Yield
Vacuum integrity, often specified at <1×10⁻⁹ mbar·l/s (He) for vacuum components, underpins repeatability. Microleaks allow ambient gases and moisture to intrude, destabilize pressure, prolong pumpdown, and increase the likelihood of particles and film defects. Over time, what looks like a minor vacuum anomaly becomes a systemic source of scrap and rework. A disciplined approach—standardized methods, consistent sensitivity thresholds, and fast confirmation—prevents small defects from cascading into excursion events that threaten line wide performance and uptime.
Where Traditional Methods Struggle
Conventional test practices often lack the sensitivity and speed required for advanced nodes. Some methods miss intermittent or extremely small leaks; others require long averaging times that slow down qualification and maintenance windows. Without clear pass/fail criteria, data can be difficult to compare across tools, lines, or sites, making it harder to enforce global standards and continuously improve.
INFICON: Precision Leak Detection That Protects Yield
INFICON offers a portfolio of helium leak detectors specifically designed to help fabs shorten maintenance cycles, rapidly identify leaks, and confidently validate vacuum integrity.
- SMART-Spray enables targeted helium delivery at low, predefined flow rates, reducing background while conserving helium. It also provides an easy-to-use, safer (hoseless) method for reliable spray pinpointing on the tool.

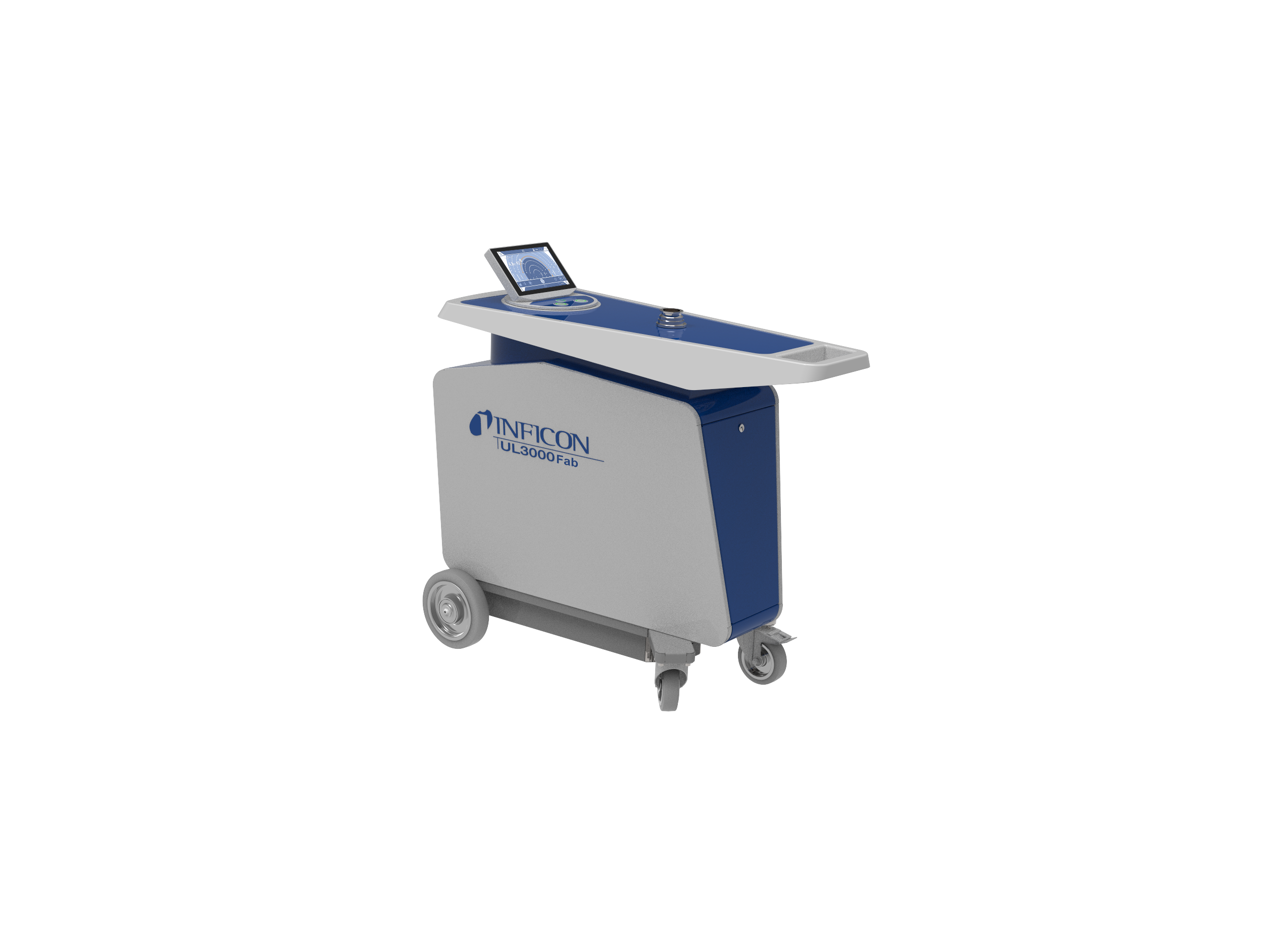

- For mobile on-tool work in cleanrooms, the UL3000 Fab Series offers fast startup, high sensitivity, and a robust mass spectrometer design optimized for semiconductor maintenance tasks. Options such as HYDRO·S software for water vapor suppression and the sniffer line support rapid on-tool diagnosis—ideal when you need to verify a chamber or gas box for tightness before transfer to production.

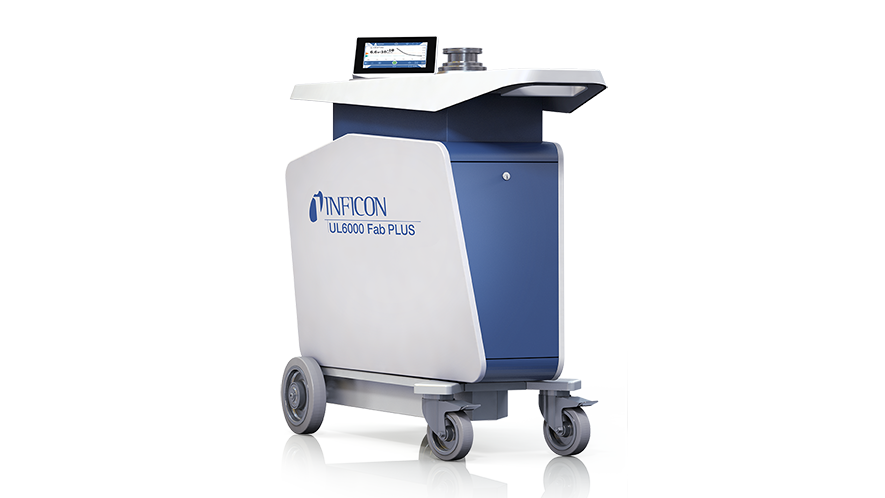

- When very large volumes and the most demanding cycle times are required, the UL6000 Fab Series sets the benchmark for response time and throughput. The UL6000 Fab PLUS adds I·RISE—intelligent rate-of-rise testing—to automate pressure rise measurements and dramatically shorten test times, even for large chambers.
- For cost-effective, robust vacuum leak testing, the UL1000 / UL1000 Fab delivers proven sensitivity and maneuverability, making it a go to choice for PMs and routine qualification across maintenance areas. Its detection limits reach the 10⁻¹² mbar∙l/s range in vacuum mode while maintaining practical response times—an excellent balance of performance and TCO.
These solutions together support a consistent, fab-wide approach: mobile qualification on the tool, rapid diagnosis for large volumes, integrated testing at the OEM level, and targeted sniffing where needed—all with traceable data.
Speed, Sensitivity, and Clean Processes—No Trade-offs
INFICON systems are engineered to combine high detection sensitivity with fast response and short pump-down, delivering less downtime and fewer rework loops. On platforms like the UL3000 Fab and UL6000 Fab, software features such as HYDRO·S and I·CAL (Intelligent Calculation Algorithm) accelerate access to the sensitivity ranges required for advanced nodes; on the UL6000 Fab PLUS, I·RISE further compresses overall cycle times for rate-of-rise measurements.
To make leak testing even more efficient, INFICON’s SMART Essentials—SMART-Spray, I·BOOST, I·CHECK, and SPRAY-Check—reduce human error, speed up the signal, and simplify verification of detector readiness. The result: faster localization, shorter test cycles, and confident pass/fail decisions even across complex tools.
Yield Impact You Can Measure
A proactive leak detection strategy stabilizes chamber pressure profiles, supports uniform deposition and etch rates, and minimizes overlay and patterning variability. With faster, more repeatable methods, teams return tools to production sooner, reduce unplanned stops, and lower scrap. In real-world fabs, teams use the UL3000 Fab for chamber qualification after maintenance, the UL6000 Fab for large-volume tool checks during qualification, and the UL1000 Fab as a durable shopfloor workhorse.
For additional fab applications, INFICON also offers the LDS3000 Helium and Hydrogen Leak Detector for automated system-level quality gates and the Ecotec 4000 Multi-Gas Leak Detector for rapidly identifying leaks in gas distribution—closing the loop from subfab to process chamber.
Standardization Across Sites
When multiple fabs and tool sets are involved, repeatability and reliability are essential. INFICON platforms support consistent pass/fail thresholds, data logging, and integration with fab automation or OEM controls—making it straightforward to standardize leak testing procedures globally, compare results, and drive continuous improvement with confidence that tests are equivalent—whether a maintenance team runs them on a night shift or they are embedded in an OEM tool recipe.
Start Improving Your Yield Today
Tight systems are one of the fastest and most cost-effective ways to boost semiconductor yield and protect uptime. Whether you are optimizing a maintenance window, qualifying a new tool, or rolling out a fab-wide standard—INFICON provides the technology and expertise to strengthen vacuum integrity, from subfab to process chamber, from R&D to HVM.
Ready to identify the best setup for your environment? Contact our semiconductor specialists today.
