Vacuum Under Control
Why leak detection and vacuum measurement are critical to fab uptime and yield.

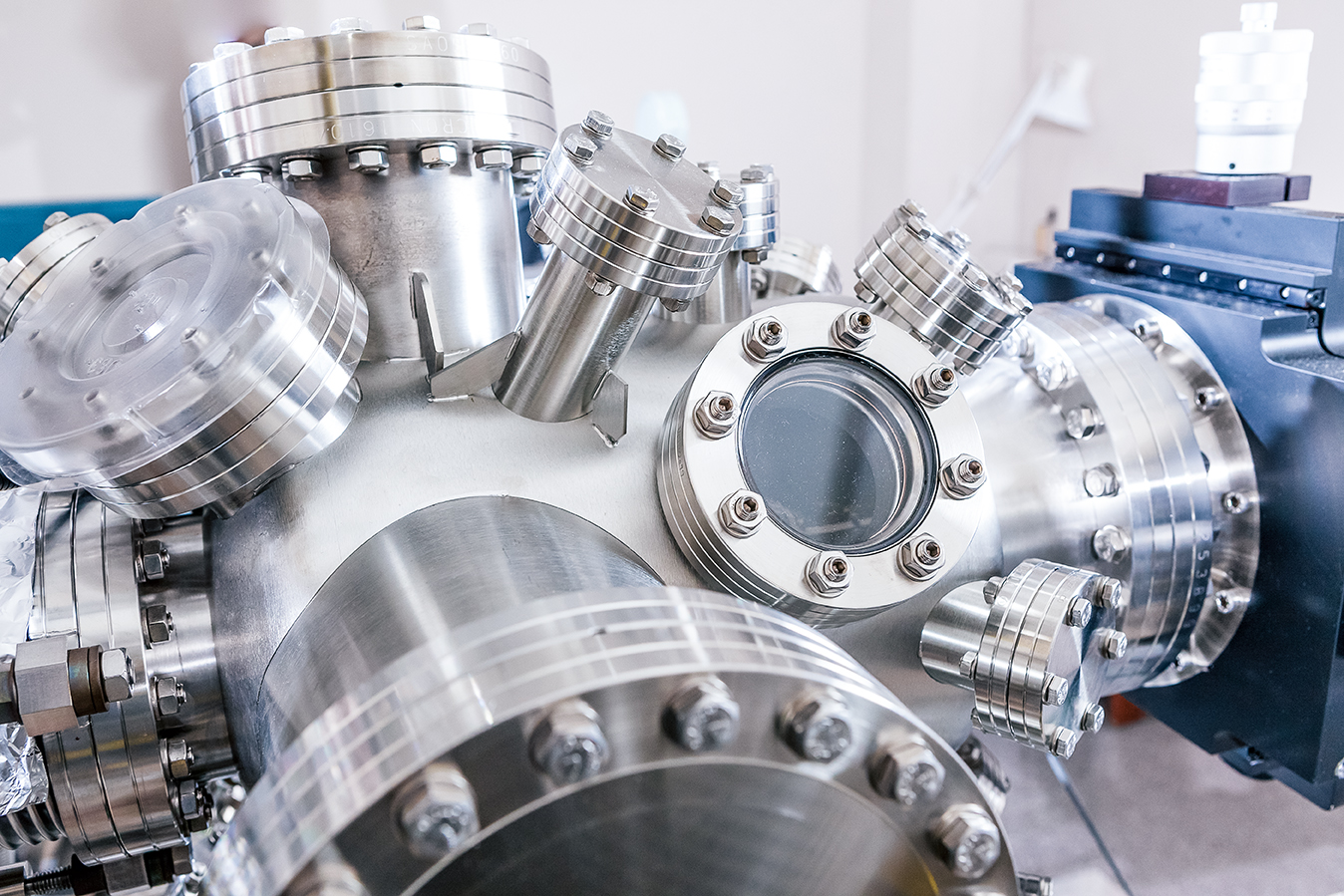

Vacuum technology is a foundational element of modern semiconductor manufacturing. From front-end wafer processing to back-end steps—including plasma etch and PECVD deposition, which require tight vacuum control—and through advanced device fabrication, many critical process steps depend on precisely controlled vacuum environments. Maintaining suitable high vacuum conditions is essential not only for process performance, but also for yield, equipment reliability, and long-term cost control.
Beyond semiconductor manufacturing, vacuum technology is widely required across industry segments such as display and solar, highlighting its critical role throughout the broader manufacturing spectrum.
The Role of Vacuum in Semiconductor Processes
Semiconductor processes such as plasma etching, physical and chemical vapor deposition, ion implantation, and surface treatment all require controlled environments where pressure and gas composition are tightly regulated. Vacuum enables these conditions by:
- Removing unwanted gases and contaminants
- Allowing precise control of process chemistry
- Enabling stable and repeatable plasma behavior
- Preventing particle generation and defect formation
Without a stable and controllable vacuum, process uniformity and repeatability from run to run degrade, contamination increases, and device performance can be compromised.
Vacuum Regimes in the Fab
Semiconductor manufacturing tools operate across multiple vacuum regimes, each serving a specific purpose:
| Vacuum Regime | Typical Pressure Range | Typical Use |
|---|---|---|
| Rough (or low) vacuum | ~1000 mbar (atm) to 1 mbar | During initial pump-down and for load-lock chambers that transfer wafers between atmospheric and vacuum environments |
| Medium vacuum | 1 to 1 × 10-3 mbar | Used across a wide range of deposition, etch, and surface treatment processes requiring controlled sub-atmospheric pressure conditions |
| High vacuum (HV) | 1 × 10-3 to 1 × 10-7 mbar | Critical for deposition and etching processes requiring tight contamination control and precise gas flow, as well as for wafer analysis (e.g., SEM) to verify product quality |
| Ultra-high vacuum (UHV) | < 1 × 10-7 mbar (typically down to 1 × 10-11 mbar) | Required for highly sensitive applications such as advanced research, ion implantation, and specialized thin-film processes, and often used for thin-film quality analysis |
Vacuum ranges are defined in ISO 35291:2019 and specified by pressure ranges, typically expressed in pascal (Pa). The table above presents pressure ranges in millibar (mbar) and illustrates how each regime supports specific semiconductor manufacturing functions.
What Threatens Vacuum Stability?
External Leaks and System Degradation
Vacuum integrity can be compromised by several factors during normal tool operation and maintenance. Even after leak checks have been successfully completed during system installation or setup, vacuum performance can degrade over time. Leaks may develop in process chambers, load locks, and gas delivery systems, while O-rings, gaskets, and flanges gradually degrade due to thermal cycling, plasma exposure, and aggressive process chemistries. Aging gas panels and piping further increase the risk of microleaks, particularly after frequent reconfiguration or service. When leaks occur, air or moisture can enter the system, disrupting pressure stability and introducing contaminants into the process environment.
Additionally, thermal cycling is a key contributor, as semiconductor tools repeatedly transition between ambient and elevated process temperatures. Differential thermal expansion between chambers, flanges, fasteners, and seals reduces sealing force over time, creating micro gaps at interfaces. These effects typically manifest as pressure drift, extended pump-down times, or unstable base pressure. Each loss of vacuum integrity increases the risk of process drift, yield loss, and unplanned downtime, making continuous pressure measurement and sensitive leak detection essential for early detection and correction.
Internal Leaks and Process Impact
Internal leaks can arise from sources such as outgassing of chamber materials, malfunctioning slit valves between transfer chambers and processing modules, or degraded seals within load locks and gas lines. Unlike external leaks that introduce ambient air, these internal sources often generate contamination from within the system itself. This can lead to wafer surface defects, film quality degradation, or non-uniform deposition. Even minor leaks can disrupt local pressure conditions, alter plasma characteristics, or introduce unintended reactive species into the process environment, ultimately affecting device performance and yield. Regular monitoring, preventive maintenance, and timely replacement of susceptible components are therefore critical to maintaining vacuum stability and process integrity.
Ensuring Vacuum Is Maintained at the Right Level
To keep vacuum systems operating within specification, semiconductor fabs depend on accurate pressure measurement using gauges and sensors, combined with routine maintenance of seals, valves, and chamber components. Continuous monitoring of pressure behavior during tool operation helps identify abnormal trends and deviations from expected performance.
However, pressure measurement alone does not tell the full story. While gauges can indicate that a change has occurred, they do not always explain the root cause. Identifying whether a deviation is due to a leak, component degradation, or process-related variation requires dedicated leak detection methods to preserve vacuum integrity over time. Regular leak testing—especially after maintenance—also helps prevent downtime and system degradation. Implementing a routine leak‑check ensures issues are caught early, saving time and cost by avoiding processes running under leaking conditions.
Discover our range of helium leak detectors for identifying and pinpointing micro leaks.
Discover our solutions for real-time, in-process leak detection.
Discover our leak and impurity detection solutions with quantitative material analysis.
Semiconductor Innovation Center
By providing accurate solutions for leak detection, vacuum measurement, and process control, INFICON helps manufacturers worldwide ensure their vacuum systems consistently operate at the right level—supporting yield, reliability, and long-term success.
