Selecting the Right Residual Gas Analyzer for Unique Applications

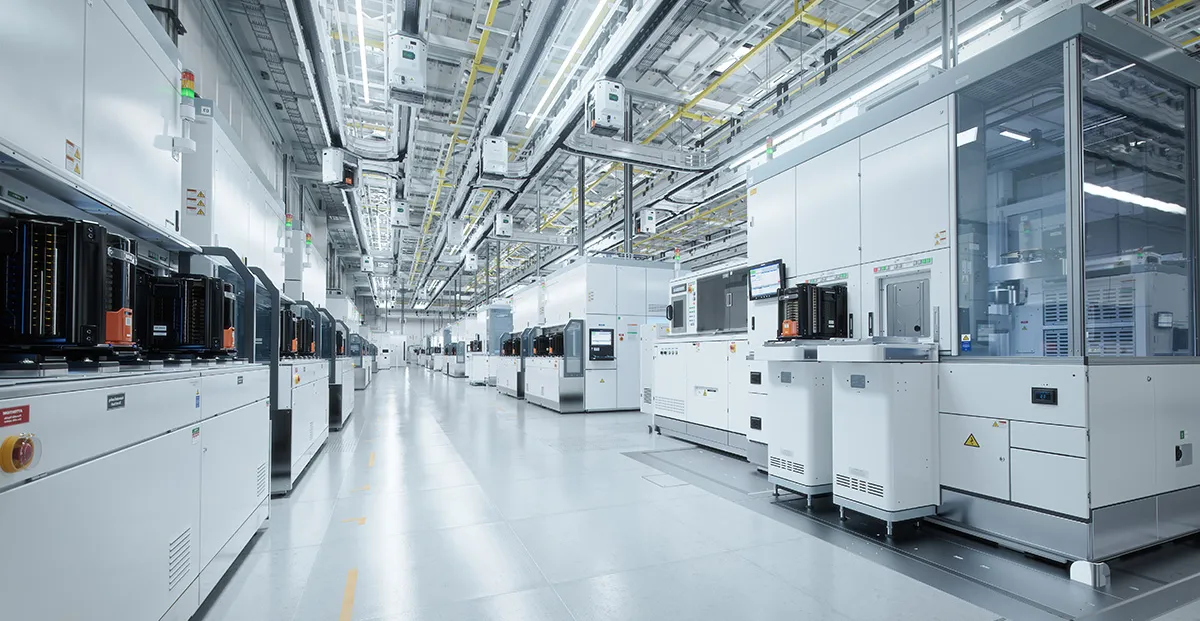

Residual gas analyzers (RGAs) are no longer just lab instruments; they are critical enablers for semiconductor fabs and industrial manufacturing. By continuously monitoring and analyzing gas compositions within vacuum systems, RGAs ensure process quality and operational efficiency. In today’s Smart Manufacturing environments, RGAs also provide valuable real-time data that supports predictive maintenance, process optimization, and digital factory initiatives.
With so many different RGA options available, how do you select the right one? The right selection is critical for ensuring accurate and reliable vacuum system diagnostics and supporting data-driven process control.
Here are three key questions to consider:
- What mass range is required? The mass range determines which gases the RGA can detect. For example, semiconductor manufacturing often requires detection of gases such as hydrogen (2 amu), helium (4 amu), water vapor (18 amu), nitrogen (28 amu), oxygen (32 amu), and argon (40 amu). An RGA with a mass range of 1-100 amu is typically sufficient for these applications.
- How sensitive does the RGA need to be? Sensitivity is all about detecting trace levels of gases. If your process is sensitive to extremely low gas concentrations, you need an RGA with high sensitivity and low detection limits — sometimes down to parts-per-billion (ppb). The choice between a Faraday Cup (FC) and an Electron Multiplier (EM) detector depends on your sensitivity requirements: FC is suitable for general use, while EM is ideal for ultra-low concentration detection.
- What is the system’s operating pressure? Standard RGAs optimally operate below 10⁻⁴ Torr. Systems running at higher pressures (up to 2 × 10⁻² Torr) need a high-pressure RGA or a pressure-reducing inlet to maintain accuracy. These solutions ensure the sensor remains in its optimal vacuum range, enabling continuous, automated monitoring, even in challenging environments.
Want to Dive Deeper?
Selecting the right RGA is about more than just specifications; it’s about understanding your application’s unique requirements and matching them with the right capabilities. By considering mass range, sensitivity, and operating pressure, you can ensure precise gas analysis and maintain the integrity of your vacuum processes. Our Technical Note provides additional guidance to help select the optimal instrument for unique applications and requirements.
