1. Augent® OPG550
Dual Gauge for Optical Gas Analysis and Total Pressure Measurement

Augent® OPG550

Optical Plasma Vacuum Gauge

Augent-OPG550
Drop-in Options

Revolutionize your vacuum gauge experience with us!

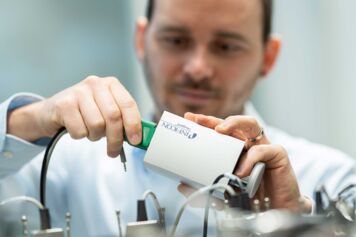

The INFICON Augent® Optical Plasma Gauge is a compact and intelligent solution for vacuum monitoring.

Augent combines two sensor technologies into one compact device for gas type monitoring from 1 x 10-7 to 5 mbar and to measure total pressure from 1 x 10-7 mbar to atmosphere at the same time. Augent is protected by an integrated Pirani sensor to switch off plasma above 20 mbar. The fast optical measurement principle allows the detection of in principle any type of gas.

We require your consent for video content
We use the service of Youtube to provide video content. By clicking 'Accept', you consent to its use.
More Information
Fallback image

Advantages

  • High speed leak detection allows chamber leak test
  • Increase of productivity and yield
  • Long life time, no filament burns, air inrush protection
  • Withstand process chemistry
  • Smart algorithm for easy integration
  • Compact design and small footprint
  • Reliable and fast start up

3D Model

Zoom and pan for a closer look at the Augent® OPG550

Typical Applications

  • Chamber leak check, faster RoR (rate of rise) test
  • Leak check to find internal leaks from gas supply lines
  • Real time end point control
  • Gas type and concentrations control
Watch video

Tutorial Videos

How to clean the sensor?
How to replace the sensor?
We require your consent for video content
We use the service of Youtube to provide video content. By clicking 'Accept', you consent to its use.
More Information
We require your consent for video content
We use the service of Youtube to provide video content. By clicking 'Accept', you consent to its use.
More Information

Specifications

Measurement range N2mbar
Torr

1×10-7 … 5
(7.6×10-8 … 3.8)



Accuracy total pressure reading N2
1 x 10-7 ... 100 mbar% of reading30
100 ... 1000 mbar% of reading50

Repeatability total pressure reading N2
1 x 10-7 ... 100 mbar% of reading5

Temperature
Operation (ambient)°C+5 … +50
Storage°C-20 … +70
Bakeout at flange with electronic unit°C<80
Bakeout at flange w/o electronic unit°C<120

Supply voltage
At gaugeV (dc)+14.5 … +30
RippleV (p-p)<1
Power consumptionW<5
Fuse to be connectedAT1

Materials exposed to vacuum
GeneralGeneralAl2O3, Stainless steel
AnodeAnodeMolybdenum
Ionization chamberIonization chamberTitanium, stainless steel
Ignition aidIgnition aidStainless steel
Download full specifications

Part Number

Accessories
Spare Parts
Part NumberDescription
303-333Diagnostic cable for Diagnostic Port (RS232), 2 m
351-05124 V (dc) power supply with analog out and RS232 line
351-052Optical window cleaning kit (for gauges with PN 3OF1-xxx-xxxx)
Part NumberDescription
351-594Replacement sensor DN ISO 16 KF
351- 595Replacement sensor DN 16 CF-R
351-597Replacement sensor DN ISO 25 KF
351-598Replacement sensor DN ISO 40 KF
351-599Replacement sensor DN ISO 40 CF-F
351-596Replacement sensor 8 VCR female
351-055Spare ion chamber TI - OPG550
351-995MxG40x/50x, OPG550 Spare parts ignition aid (10)

Part Number

Ordering Information Augent OPG550
Ordering Information Augent OPG550

Download GUI-Software
