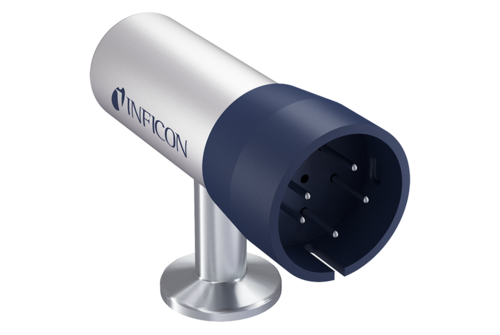

The Pirani Gauge Enhanced 050 (PGE050) is the passive version of our active convection enhanced Pirani gauges PGE300 and PGE500. Equipped with the same sensor technology, the PGE050 works in conjunction with our VGC031 and VGC083 passive gauge controller units.

Thanks to its convection enhanced principle, PGE050 is capable of high accuracy readings in the measurement range between 1.3×10-3 to 1333 mbar. With its wider measuring range and unmatched accuracy, especially at near-atmospheric pressures, PGE050 is the first choice when replacing other Pirani or thermocouple gauges in your vacuum system. The robust sensor design makes the PGE050 a high value/low cost of ownership choice and qualifies for many applications where an economical vacuum measurement from atmosphere to high vacuum range is required.

Advantages

  • Convection enhanced Pirani technology for wide measurement range and higher accuracy near atmosphere
  • Gold plated tungsten filament
  • Mechanical robust and less susceptible to mechanical shock and vibration
  • Large choice of flange options
  • Compliance & standards: CE, RoHS
  • Direct drop in replaces Granville-Phillips® Convectron® gauge sensor (same plug/ pinouts)
  • PGE050 accepts Granville-Phillips® Convectron® controllers, cables and modules
  • Ideal gauge sensor for upgrading your installed Pirani and thermocouple gauge

(Granville-Phillips®, Convectron® and Mini-Convectron® are registered trademarks of MKS Instruments, Andover, MA)

Typical applications

  • General vacuum measurement and control from atmosphere to high vacuum range

Operating Units

  • Vacuum Gauge Controller VGC083 A/B/C and VGC031

Specifications

Gauge typeConvection enhanced Pirani
Pressure measurement range1.3×10-4 mbar to 1333 mbar
Feedthroughglass
Bake-out temperature range≤150°C1)
FeaturesGold plated tungsten (W) filament
Mounting orientation: horizontal recommended
(orientation has no effect on measurements below 1 mbar)

1) non-operating, without cable
Download full specifications

Part Number

Part NumberDescription
352-500PGE050 16KF
352-501PGE050 25KF
352-502PGE050 40KF
352-503PGE050 16CFR
352-504PGE050 40CFR
352-505PGE050 4VCR
352-506PGE050 8VCR
352-507PGE050 1/8NPT
399-580Cable 3m/10ft, 50°C, PGE050
399-581Cable 8m/25ft, 50°C, PGE050
399-582Cable 15m/50ft, 50°C PGE050

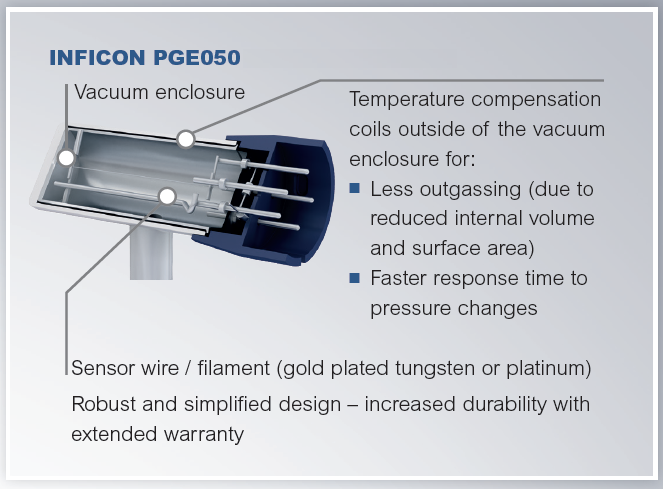

Unique design features
