Vacuum Gauge Controller
IM540
IM540
Versatile hot cathode ionization passive gauge controller
Drop-in Options
Revolutionize your vacuum gauge experience with us!
Product configurator
Gemini™ MxG5xx
Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Request
Your configuration has been successfully sent!
The Vacuum Gauge Controller IM540 is a versatile ionization gauge controller offering complete vacuum measurement and control in the range between 10-12 mbar and atmospheric pressure. Depending on the application and user’s needs, IM540 is your one-solution as it may combine up to 4 different principles of vacuum measurement - Pirani, capacitive diaphragm, Bayard-Alpert and Extractor. This controller allows for a reliable and complete integration in complex process control systems.
Advantages
- Supports the operation of the IE414 (Bayard-Alpert) and the IE514 (extractor) hot cathode ionization gauges
- Two active gauges from the PSG5xx (Pirani), PCG55x (Pirani-Capacitance diaphragm) and CDG (Capacitance diaphragm) active gauge lines can be connected and operated
- Simple operation with menu guided display for parameter, sensor or general settings
- Built-in RS232 communication interface, optional PROFIBUS DP interface board (IF 540 P)
- Two set points (optional 7) with adjustable hysteresis
- High resolution – 16 bit A/D converter
- 2 programmable 0 to 10 V chart recorder outputs
Gauges Overview

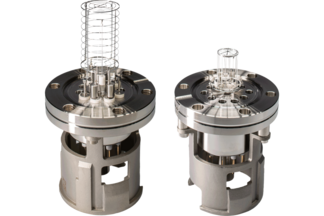

IE414
IE514
PSG5xx
PCG55x
CDG (e.g. CDG025D, CDG045D)
| Gauge principle | Bayard-Alpert, hot cathode ionization |
| Pressure range | 2×10-11 ... 1×10-2 mbar (with modular emission current) |
| Bake-out temperature | ≤400 °C |
| Gauge principle | Extractor, hot cathode ionization |
| Pressure range | 2×10-12 ... 1×10-4 mbar |
| Bake-out temperature | ≤400 °C |
| Gauge principle | Pirani (active gauge type) |
| Pressure measurement range | 8x10-4 mbar to ATM |
| Bake-out temperature range | ≤80 / 250 °C (model dependent) |
| Gauge principle | Pirani-Capacitance diaphragm (active gauge type) |
| Pressure measurement range | 5×10-5 mbar to 1.5×103 mbar |
| Bake-out temperature range | ≤80 / 250 °C (model dependent) |
| Gauge principle | Capacitance diaphragm (active gauge type) |
| Pressure measurement range | 4 user-selectable pressure decades |
| Bake-out temperature range | model-dependent |
Measurement configurations
Channel 1 + 2
Channel 3 + 4
| Gauge principle | Hot cathode ionization gauge |
| Gauge model | IE414 (Bayard-Alpert) IE514 (Extractor) |
| Gauge principle | Active gauge: Pirani Pirani-Capacitance diaphragm Capacitance diaphragm |
| Gauge model | PSG5xx PCG55x CDG (e.g. CDG025D, CDG045D) |
Interface board
IF 540 P
IF 540 P
| Communication protocol | PROFIBUS interface and relays (1.5 A) |
Specifications
IM540
IM540
| Measurement channel | 4 |
| Display | LCD, LED backlight |
| Display rate | 4 s-1 |
| Measurement range | 1 x 10-12 ... 1100 mbar |
| Measurement unit (selectable) | mbar, Torr, Pa, hPa, Micron, V |
| Measurement range switching | automatic or decade pre-select |
| Chart recorder outputs | logarithmic 0 to 10 V (1 V / dec) or linear 0 to 10 V |
| Interface | RS232C, PROFIBUS (with IF540P) |
| Switching thresholds (single operation or interval) | 2 with floating changover contact |
| Power supply | 90 ... 264 V (ac) |
| Frequency | 47 ... 63 Hz |
| Operation temperature | +5 ... +40°C |
Part number
Part Number
Accessories
| 399-660 | IM540 Vacuum Gauge Controller |
| 399-661 | IE414 DN 40 CF-F |
| 399-676 | Replacement cathode IE414 |
| 399-663 | IE514 DN 40 CF-F |
| 399-677 | Replacement cathode IE514 |
| Interface board | |
| 399-670 | IF540P PROFIBUS DP Interface board |
| Gauge head cables to IE414/514, 80 °C | |
| 399-680 | 3 m |
| 399-681 | 5 m |
| 399-682 | 10 m |
| 399-685 | 50 m |
| Gauge head cables to IE414/514, 200 °C | |
| 399-686 | 3 m |
| 399-687 | 5 m |
| 399-688 | 10 m |
| 399-690 | 50 m |
