Hot Ionization Gauges

BAG055

Mini hot ion Bayard-Alpert passive gauge head for VGC083

BAG055

Product configurator

Gemini™ MxG5xx

Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Your configuration
inficon-gauge
Gemini™ MxG5xx
Flange
DN 16 ISO-KF
Switching functions
None
Electrical Connection
FCC, 8-pin
Digital Interface
None
Measurement range
1.2 - 8.68 V
Request
Personal information

You can unsubscribe from these communications at any time. For more information please review our Privacy Policy.

Product
inficon-gauge
Gemini™ MxG5xx
Gemini™ MAG500
Your configuration has been successfully sent!
Back

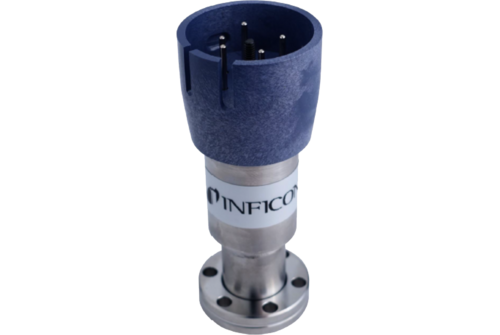

The hot cathode ionization passive vacuum gauge head BAG055 is a miniature, metal enclosed Bayard-Alpert sensor designed for use with the Vacuum Gauge Controller VGC083A. BAG055 is an electron bombardment (EB) degas metal enclosed hot ionization vacuum gauge capable of pressure measurement down to 1×10-9 mbar.

Thanks to its compact size and a large selection of possible flanges and fittings, BAG055 can be installed in every vacuum system easily and with minimal footprint. BAG055 is offered with a dual yttrium oxide coated iridium filament and can be baked up to 200 °C. The high accuracy (15%) makes BAG055 a cost effective and robust choice for general vacuum industrial or R&D applications.

Advantages

  • Long standing, reliable and proven gauge head design
  • Drop-in replacement thanks to its compact size, large choice of connection flanges and fittings
  • Dual yttrium oxide coated iridium filament cathode assembly
  • Electron bombardment (EB) degassing

Typical applications

  • Industrial or R&D applications requiring precise vacuum measurement in the high vacuum range

Operating Units

  • Vacuum Gauge Controller VGC083A
