Stripe® CDG100Dhs
100°C temperature controlled, full scale 0.1 … 1000 Torr / mbar
Revolutionize your vacuum gauge experience with us!
Product configurator
Gemini™ MxG5xx
INFICON Stripe high-speed Capacitance Diaphragm Gauges are the fastest, highly accurate vacuum measurement instruments available. With a less than 2 ms response time combined with the EtherCAT fieldbus interface it opens up a total new field of applications.
The proven temperature controlled, corrosion resistant, ultra-pure ceramic sensor provides superior span stability over many years paired with state-of-the-art zero stability. Stripe comes with the INFICON patented unique sensor shield which protects the gauge from undesired process by-products.
INFICON Stripe using an innovative heating concept, which provides a cool to the touch surface, and its unique speed capabilities,enabling an unprecedented productivity increase, making it the most advanced vacuum instrument of its kind.
Advantages
- High productivity – Faster than 2 ms response time
- Flexible integration – EtherCAT fieldbus
- Long lifetime – Proven ceramic sensor
- Forget recalibration – 90 ppm/year full scale stability
Typical applications
- Atomic layer deposition
- High speed process control
- PVD, CVD, Etch
- General high temperature vacuum applications
Specifications
| Accuracy | % of reading | 0.2 |
| Resolution | percent FS | 0.003 |
| Output signal (analog) | V (dc) | 0 … +10 |
| Response time | ms | 2 ... 20 |
| Materials exposed to vacuum | Aluminum oxide ceramic (AI2O3), stainless steel (AISI 316L) | |
| Accuracy | % of reading | 0.2 |
| Resolution | percent FS | 0.003 |
| Output signal (analog) | V (dc) | 0 … +10 |
| Response time | ms | 2 ... 20 |
| Materials exposed to vacuum | Aluminum oxide ceramic (AI2O3), stainless steel (AISI 316L) | |
| Accuracy | % of reading | 0.4 |
| Resolution | percent FS | 0.003 |
| Output signal (analog) | V (dc) | 0 … +10 |
| Response time | ms | 2 ... 20 |
| Materials exposed to vacuum | Aluminum oxide ceramic (AI2O3), stainless steel (AISI 316L) | |

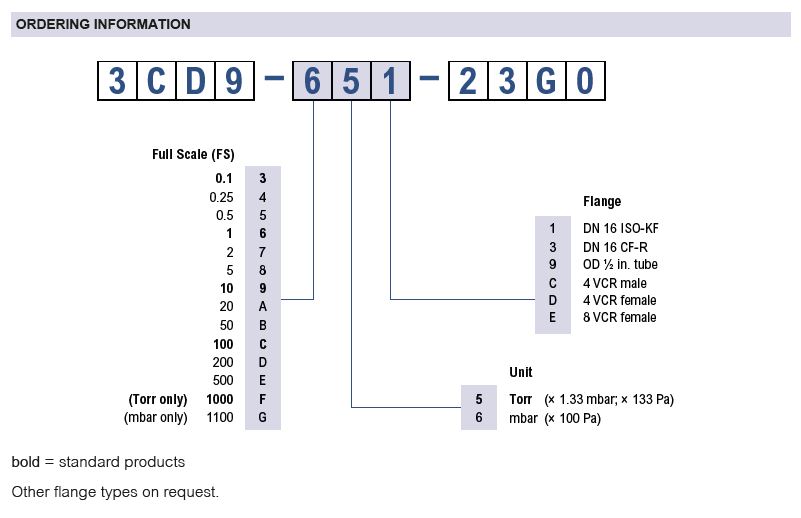

Part Number
