The Ion Reference Gauge Controller IRC081 and its User Interface are an operating and display interface to the standardized Ion Reference Gauge IRG080. IRC081 delivers precise and reference total pressure measurement and local control for the IRG080 gauge. Read-out and switch on/off functionality are available remotely via an USB computer interface.

Thanks to the intuitive "IRC081 User Interface" software, included, selected settings and measured pressure value can be conveniently graphically displayed. The IRC081 operating unit is offered with different sets of cable length.

Advantages

  • Operating and display solution for accurate vacuum pressure measurement
  • User control on all IRG080 gauge parameters set
  • Simple manual operation with 5 potentiometers
  • User Interface connection via USB-B port to PC
  • PC Software in LabVIEWTM
  • Data log and parameter log functionality
  • External port for status and vacuum interlock

Panel view

Front
Back
AUSB port for connection to the PC
BBIAS knob for setting the cathode bias voltage
CWEHNELT knob for setting the Wehnelt voltage
DCAGE knob for setting the cage (anode) voltage
EDEFLECTOR knob for setting the deflector voltage
FFARADAY knob for setting the Faraday voltage
GSTATUS LED display for USB connection
HACTIVE LED display for USB connection
IPOWER LED display
JFILAMENT OK LED display
KINTERLOCK OK LED display
LMEASURE LED display
AGAUGE connection (ion collector current input)
BDEFLECTOR measuring socket (deflector voltage)
CWEHNELT measuring socket (Wehnelt voltage)
DFIL HIGH measuring socket (bias voltage – upper value)
EGND measuring socket
FPower supply with power switch and device fuses
GAttachment and grounding screw for internal protective conductor
HVACUUM INTERLOCK/STATUS connection
IFIL LOW measuring socket (bias voltage – lower value)
JCAGE connection (anode voltage)
KFARADAY connection (Faraday voltage)
LGAUGE connection (Interface to Sensor)

User Interface

Your single control window via the IRC081 User Interface

  • Measurement on/off control
  • Emission current control
  • Full display with pressure value, set voltage values, measured current values, transmission rate
  • Graph display of the current pressure and current values
  • Manual or auto set-up of the ion current measurement range
  • Display for gas type correction and sensitivity (configurable)
  • Interlock and system status display
  • Warning and instruction message area
IRC081 User Interface single control window
IRC081 User Interface single control window

Full gauge configuration

  • Gas type
  • Sensor sensitivity (mbar-1)
  • Maximum filament heater current
IRC081 User Interface Full Gauge Configuration
IRC081 User Interface Full Gauge Configuration

Data storage

  • Logging settings menu
IRC081 User Interface Data Storage
IRC081 User Interface Data Storage

Specifications

IRC081
IRC081
Measurement channel1
Measurement rate1 s-1
User interfaceFront panel, PC-software
Manual control5 knobs
Remote controlvia USB 2.0 with PC software "IRC081 user interface"
Measurement range<1 x 10-8 ... 1 x 10-4 mbar
Measurement unit (selectable)mbar, Torr, Pa
Controller connections
to gauge ion collectorBayonet (BNC)
to gauge control interfacePush-pull self-latching, 7-pin
Vacuum interlock / status port1 × D-sub 9-pin
Available input / output signals1 × sensors status, 1 × external vacuum interlock
Analog measuring sockets7 (2x filament, Wehnelt, anode, deflector, Faraday, GND)
Interface (digital)USB 2.0
Power supply100 ... 240 V (ac)
Frequency50 ... 60 Hz
Operation temperature+5 ... +40 °C
Download full specifications

Part number

Part Number
Accessories
399-880IRC081 Ion Reference Gauge Controller, USB 2.0
 Heat resistant gauge head cable set to IRG080, with contact protection
399-8835 m (16.4 ft)
399-88410 m (32 ft)
399-88515 m (49.5 ft)

 Shockproof measuring line, CAT III, 1 m
399-887black
399-888red

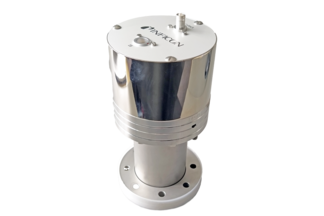

 IRG080
399-874Ion Reference Gauge IRG080, DN 63 CF-R
399-875Ion Reference Gauge IRG080, DN 63 CF-F, with mu-metal intermediate piece
