4. Reducing Tee - Stainless Steel
ISO-K

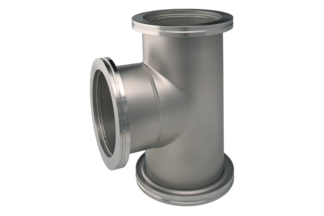

Reducing Tee - Stainless Steel

Reducing-Tee---Stainless-Steel-ISO-K

Product configurator

Gemini™ MxG5xx

Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Your configuration
inficon-gauge
Gemini™ MxG5xx
Unit
mbar
Flange
DN 16 ISO-KF
Display switching functions
None
Electrical Connection
FCC, 8-pin
Digital Interface
None
Measurement range
1.2 - 8.68 V
Request
Personal information

You can unsubscribe from these communications at any time. For more information please review our Privacy Policy.

Product
inficon-gauge
Gemini™ MxG5xx
Gemini™ MAG500
Your configuration has been successfully sent!
Back

INFICON ISO-K quality fittings are manufactured according to ISO 1609, DIN 28404 and Pneurop 6606. Our quality large diameter fittings are the standard vacuum components for all vacuum and high vacuum lines. The high quality INFICON fittings are designed and tested for leak rates less than 1 x 10-9 mbar l/s.

Advantages

  • Competitively priced
  • World wide logistics
  • Design and measures follow strictly international respected standards
  • Surface finish, welds, material specifications and cleanliness meet or exceed high vacuum specifications
  • 2011/65/EU RoHS compliant

Specifications

TypeDimension ADimension BDimension CMaterial:
DN 160/63 ISO-K138276130Stainless steel 304/-
DN 160/100 ISO-K138276131Stainless steel 304/-
DN 250/200 ISO-K190380208Stainless steel 304/-

Part Number

 Part NumberDescription
DN 160/100 ISO-K212-197Red.-T piece DN 160/100 ISO-K
DN 160/63 ISO-K212-196Red.-T piece DN 160/63 ISO-K
DN 250/200 ISO-K212-198Red.-T piece DN 250/200 ISO-K
