INFICON ISO-K quality fittings are manufactured according to ISO 1609, DIN 28404 and Pneurop 6606. Our quality large diameter fittings are the standard vacuum components for all vacuum and high vacuum lines. The high quality INFICON fittings are designed and tested for leak rates less than 1 x 10-9 mbar l/s.

Advantages

  • Competitively priced
  • World wide logistics
  • Design and measures follow strictly international respected standards
  • Surface finish, welds, material specifications and cleanliness meet or exceed high vacuum specifications
  • 2011/65/EU RoHS compliant

Specifications

 DN63 ISO-KDN100 ISO-KDN160 ISO-K
Dimension A88 mm100 mm100 mm
Dimension B44 mm50 mm50 mm
Dimension C66 mm82 mm107 mm
Dimension D64 mm80 mm107 mm
Dimension E59 mm77 mm105 mm
Flanges:1xDN16 ISO-KF, 1xDN25 ISO-KF, 1xDN40 ISO-KF

Material: stainless steel 304

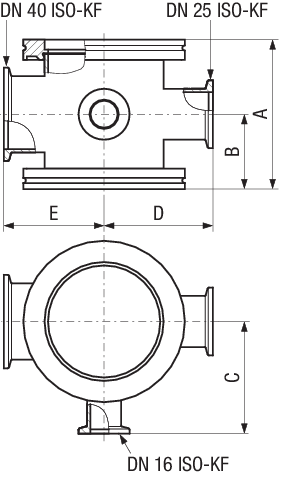

Dimension Drawing

Dimension Drawing
Download full specifications

Part Number

Part NumberDescription
212-131Measurement cross piece, inox, DN63 ISO-K
212-132Measurement cross piece, inox, DN100 ISO-K
212-133Measurement cross piece, inox, DN160 ISO-K
