ISO-K
Metal Hose

Product configurator
Gemini™ MxG5xx
Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Request
Your configuration has been successfully sent!

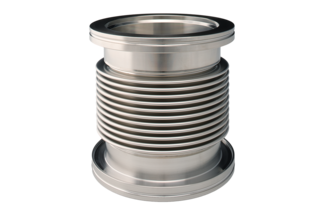

INFICON ISO-K quality fittings are manufactured according to ISO 1609, DIN 28404 and Pneurop 6606. Our quality large diameter fittings are the standard vacuum components for all vacuum and high vacuum lines. The high quality INFICON fittings are designed and tested for leak rates less than 1 x 10-9 mbar l/s.
Advantages
- Competitively priced
- World wide logistics
- Design and measures follow strictly international respected standards
- Surface finish, welds, material specifications and cleanliness meet or exceed high vacuum specifications
- 2011/65/EU RoHS compliant
Specifications
Type | DN 63 ISO-K | DN 100 ISO-K | DN 160 ISO-K |
Dimension A | 250, 500, 750, 1000 | 250, 500, 750, 1000 | 1000 |
Dimension B | 330 | 530 | 1050 |
Dimension C | 90 | 130 | 215 |
Flanges: | Stainless steel 304/- | Stainless steel 304/- | Stainless steel 304/- |
Bellows: | Stainless steel 316Ti/- | Stainless steel 316Ti/- | Stainless steel 316Ti/- |
Internal pressure: | Max 1.5 bar | Max 1.5 bar | Max 1.5 bar |
B = | Radius for multiple bending | Radius for multiple bending | Radius for multiple bending |
C = | Radius for single bending | Radius for single bending | Radius for single bending |
Part Number
Part Number | Description | |
DN 100 ISO-K | 212-215 | Metal hose, inox, DN 100 ISO-K x 250 |
212-216 | Metal hose, inox, DN 100 ISO-K x 500 | |
212-217 | Metal hose, inox, DN 100 ISO-K x 750 | |
212-218 | Metal hose, inox, DN 100 ISO-K x 1000 | |
DN 160 ISO-K | 212-222 | Metal hose DN 160 ISO-Kx1000 |
DN 63 ISO-K | 212-211 | Metal hose, inox, DN 63 ISO-K x 250 |
212-212 | Metal hose, inox, DN 63 ISO-K x 500 | |
212-213 | Metal hose, inox, DN 63 ISO-K x 750 | |
212-214 | Metal hose, inox, DN 63 ISO-K x 1000 |
