INFICON ISO-K quality fittings are manufactured according to ISO 1609, DIN 28404 and Pneurop 6606. Our quality large diameter fittings are the standard vacuum components for all vacuum and high vacuum lines. The high quality INFICON fittings are designed and tested for leak rates less than 1 x 10-9 mbar l/s.

Advantages

  • Competitively priced
  • World wide logistics
  • Design and measures follow strictly international respected standards
  • Surface finish, welds, material specifications and cleanliness meet or exceed high vacuum specifications
  • 2011/65/EU RoHS compliant

Specifications

 Dimension ADimension BDimension C
DN63 ISO-K/DN63 ISO-CF90 mm1 mm1 mm
DN100 ISO-K/DN100 ISO-CF90 mm1 mm1 mm
DN160 ISO-K/DN160 ISO-CF90 mm1.5 mm1.5 mm


Material: stainless steel 304L

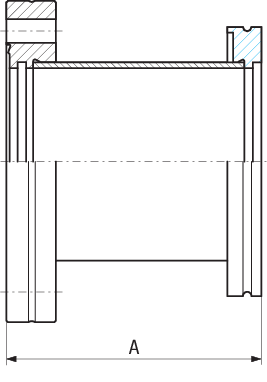

Dimension Drawing

Dimension Drawing
Download full specifications

Part Number

Part NumberDescription
213-271Transition piece, inox, DN63 ISO-K/DN63 ISO-CF
213-272Transition piece, inox, DN100 ISO-K/DN100 ISO-CF
213-273Transition piece, inox, DN160 ISO-K/DN160 ISO-CF
