On-Site, Decision Quality Data on VOCs in Water

The SituProbe Purge and Trap GC/MS System extends the capabilities of the HAPSITE Chemical Identification System to provide highly accurate, on-scene analysis of volatile organic compounds (VOCs) in water. With its fast and easy processing, the system ensures immediate results in the field to make critical decisions affecting life, health and safety.


Fast, Accurate Results

The HAPSITE SituProbe Purge and Trap GC/MS System is the only on-site purge and trap GC/MS system available today. It is controlled through the HAPSITE GC/MS user interface and is ready to analyze in minutes. Its rapid throughput means no time is lost waiting for reports, enabling immediate decision-making and response, if required.

The system provides results equivalent to running samples in a laboratory, but within minutes and without leaving the site. This virtually eliminates chain-of-custody and sample-contamination/degradation problems.


Advanced Technology Yields Lab-Quality Water Analysis On Site

The HAPSITE SituProbe Purge and Trap GC/MS System uses a modified EPA purge and trap protocol. This is made possible by the state-of-the-art SituProbe, which performs the purge in the water. No pumps, valves or cells are exposed to the water matrix, eliminating the need for sample pretreatment or filtration. Since the sample matrix does not affect the system's performance, even highly polluted water sources can be analyzed with ease. It can analyze individual samples or be operated automatically for attended, continuous water stream analysis.

Typical detection limits are in the low parts-per-billion (ppb) to parts-per-trillion (ppt) range.


Engineered for the Field

The complete, durable HAPSITE SituProbe Purge and Trap GC/MS System operates on a rechargeable battery for field use or from a 24-volt converter when external power is available. Developed to withstand harsh conditions, the entire unit is weatherproof and easily decontaminated.


Make the Right Decision - Fast

The HAPSITE SituProbe Purge and Trap GC/MS System provides emergency response and environmental testing professionals with powerful water analysis and confirmatory results, ease of use, and economy under the broad range of field conditions. It saves time and money when used to sample or monitor directly from the water stream without the need for sample vials.

Features

  • The only battery-operated insitu purge and trap system for field use with a GC/MS
  • Integrated with the HAPSITE data system
  • Modular, low-maintenance design for rugged environments
  • Unique, robust purge and trap system for the most difficult applications

Typical applications

  • Water source protection
  • Emergency response
  • Groundwater remediation
  • Storm water monitoring
  • Compliance screening

Specifications

Probe Water Depthcm
in.
13.97 to 45.72
5.5 to 18

Sample Probe Lengthm
ft.
1.83
6
Transfer Line Lengthm
ft.
1.22
4
Carrier Gas Nitrogen
Detection Limit PPT
Consumables
Consumables
Part NumberDescription
930-4062-G1Hapsite Battery
930-432-P6Canister, Carrier Gas, 6 each
930-432-P12Canister, Carrier Gas, 12 each
930-432-P24Canister, Carrier Gas, 24 each

Downloads

Brochures
Klammerlement DE
pdf 271,5 KB German Datasheets
Edge CDG045D2 1 … 1000Torr / mbar DE
pdf 577,7 KB German Datasheets
Edge™ CDG025D2 mit EtherCAT 0.1 … 1000Torr / mbar DE
pdf 540,3 KB German Datasheets
Edge™ CDG045D2 1 … 1000Torr / mbar DE
pdf 463,1 KB German Datasheets
e1b2d653-60ec-448b-a5ae-ab3815148b09 DE
pdf 60,7 KB German Datasheets
Doppel-Kreuzstück - Edelstahl 304 DE
pdf 366,1 KB German Datasheets
DN63 - DN160 ISO-K DE
pdf 284,7 KB German Datasheets
DN16 - DN160 CF-F DE
pdf 400,6 KB German Datasheets
Cube CDGsci DE
pdf 450,8 KB German Datasheets
Kreuzstück – Edelstahl
pdf 316,4 KB German Datasheets
Kreuzstück - Edelstahl 304 DE
pdf 340,3 KB German Datasheets
Kreuz - Aluminium
pdf 320,1 KB German Datasheets
Spannbandspannring DE
pdf 252,0 KB German Datasheets
Bogen 45° - Edelstahl DE
pdf 303,8 KB German Datasheets
Kupferdichtung, silberbeschichtet DE
pdf 272,4 KB German Datasheets
Kupferdichtung DE
pdf 273,8 KB German Datasheets
Kompensator DE
pdf 342,1 KB German Datasheets
Überwurfflansch mit Sprengring DE
pdf 284,6 KB German Datasheets
Koaxialdurchführungen BNC MHV DE
pdf 284,1 KB German Datasheets
Pratze DE
pdf 296,1 KB German Datasheets
Pratze mit Zylinderschraube DE
pdf 299,5 KB German Datasheets
Spannring mit Sechskantmutter DE
pdf 306,6 KB German Datasheets
Zentrierring mit Drossel DE
pdf 246,3 KB German Datasheets
Zentrierring ohne O-Ring DE
pdf 250,6 KB German Datasheets
Zentrierring mit Feinfilter DE
pdf 323,8 KB German Datasheets
Flansch mit Rohransatzansatz, Lang - Edelstahl 304 DE
pdf 234,2 KB German Datasheets

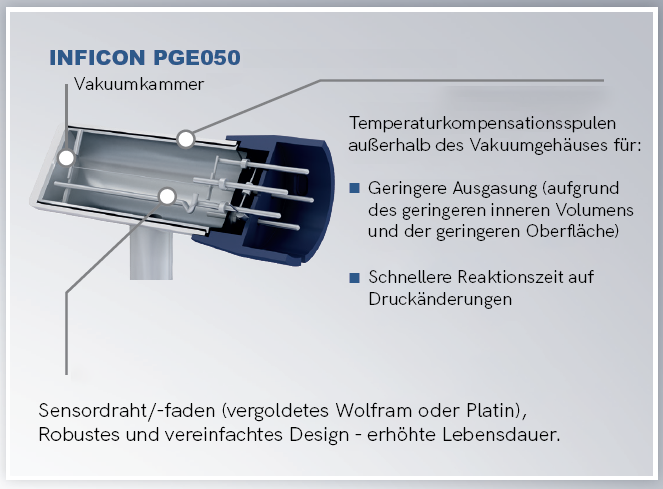

PGE050_unique design features_de
