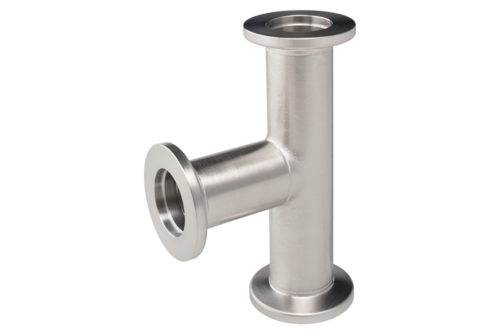

1. Tee, stainless steel 304
ISO-KF

Tee, stainless steel 304

Tee-Aluminum
Drop-in Options

Revolutionize your vacuum gauge experience with us!

Discover more

Product configurator

Gemini™ MxG5xx

Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Your configuration
inficon-gauge
Gemini™ MxG5xx
Flange
DN 16 ISO-KF
Switching functions
None
Electrical Connection
FCC, 8-pin
Digital Interface
None
Measurement range
1.2 - 8.68 V
Request
Personal information

You can unsubscribe from these communications at any time. For more information please review our Privacy Policy.

Product
inficon-gauge
Gemini™ MxG5xx
Gemini™ MAG500
Your configuration has been successfully sent!
Back

INFICON ISO-KF fittings are manufactured according to ISO 2861/1, DIN 28403 and Pneurop 6606. Our quality fittings are the standard components for all vacuum and high vacuum applications. The high quality INFICON components are designed and tested for leak rates less than 1 x 10-9 mbar l/s.

Advantages

  • Competitively priced
  • World wide logistics
  • Design and measures follow strictly international respected standards
  • Surface finish, welds, material specifications and cleanliness meet or exceed high vacuum specifications
  • 2011/65/EU RoHS compliant

Specifications

 Dimension ADimension BDimension C
DN10 ISO-KF30 mm60 mm12 mm
DN16 ISO-KF40 mm80 mm16 mm
DN25 ISO-KF50 mm100 mm25 mm
DN40 ISO-KF65 mm130 mm40.5 mm

DN50 ISO-KF



70 mm140 mm53 mm

Dimension Drawing

Dimension Drawing
Download full specifications

Part Number

 Part NumberDescription
DN10 ISO-KF211-291Tee piece, inox, DN10 ISO-KF
DN16 ISO-KF211-292Tee piece, inox, DN16 ISO-KF
DN25 ISO-KF211-293Tee piece, inox, DN25 ISO-KF
DN40 ISO-KF211-294Tee piece, inox, DN40 ISO-KF
DN50 ISO-KF211-295Tee piece, inox, DN50 ISO-KF
