INFICON ISO-KF fittings are manufactured according to ISO 2861/1, DIN 28403 and Pneurop 6606. Our quality fittings are the standard components for all vacuum and high vacuum applications. The high quality INFICON components are designed and tested for leak rates less than 1 x 10-9 mbar l/s.
Advantages
- Competitively priced
- World wide logistics
- Design and measures follow strictly international respected standards
- 2011/65/EU RoHS compliant
Specifications
DN 10-16 ISO-KF
DN 20-25 ISO-KF
DN 32-40 ISO-KF
DN 50 ISO-KF

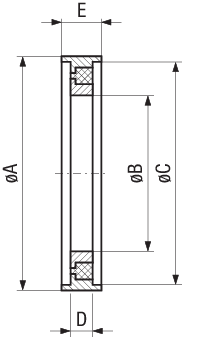

Dimension A | 32 |
Dimension B | 18 |
Dimension C | 30 |
Dimension D | 3.9 |
Dimension E | 7 |
Inner Ring: | Stainless Steel 304/1.4301 |
Outer Ring: | Aluminum 5012 |
Seal: | Indium |
Working temperature: | -196° … +60° C |
Dimension A | 42 |
Dimension B | 28 |
Dimension C | 40 |
Dimension D | 3.9 |
Dimension E | 7 |
Inner Ring: | Stainless Steel 304/1.4301 |
Outer Ring: | Aluminum 5012 |
Seal: | Indium |
Working temperature: | -196° … +60° C |
Dimension A | 57 |
Dimension B | 43 |
Dimension C | 55 |
Dimension D | 3.9 |
Dimension E | 7 |
Inner Ring: | Stainless Steel 304/1.4301 |
Outer Ring: | Aluminum 5012 |
Seal: | Indium |
Working temperature: | -196° … +60° C |
Dimension A | 77 |
Dimension B | 63 |
Dimension C | 75 |
Dimension D | 3.9 |
Dimension E | 7 |
Inner Ring: | Stainless Steel 304/1.4301 |
Outer Ring: | Aluminum 5012 |
Seal: | Indium |
Working temperature: | -196° … +60° C |
Part Number
Part Number | Description | |
DN 10-16 ISO-KF | 211-162 | Indium seal DN 10-16 ISO-KF |
DN 20-25 ISO-KF | 211-163 | Indium seal DN 20-25 ISO-KF |
DN 32-40 ISO-KF | 211-164 | Indium seal DN 32-40 ISO-KF |
DN 50 ISO-KF | 211-165 | Indium seal DN 50 ISO-KF |
