ISO-KF
Centering Ring with Filter
Drop-in Options
Revolutionize your vacuum gauge experience with us!
INFICON ISO-KF fittings are manufactured according to ISO 2861/1, DIN 28403 and Pneurop 6606. Our quality fittings are the standard components for all vacuum and high vacuum applications. The high quality INFICON components are designed and tested for leak rates less than 1 x 10-9 mbar l/s.
Advantages
- Competitively priced
- World wide logistics
- Design and measures follow strictly international respected standards
- 2011/65/EU RoHS compliant
Specifications
DN10 ISO-KF
DN16 ISO-KF
DN25 ISO-KF
DN40 ISO-KF
DN50 ISO-KF

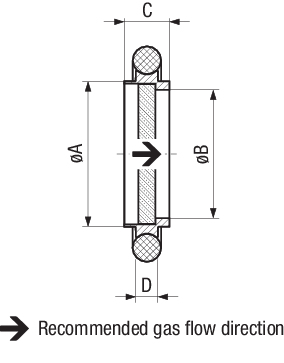

| Dimension A | 12 mm |
| Dimension B | 8 mm |
| Dimension C | 8 mm |
| Dimension D | 3.9 mm |
| Air at 20 C°, 200 mbar differential pressure: | 0.5 m3/h |
| Pore size: | 0.02 mm |
| Ring: | stainless steel 304/1.4301 |
| Filter: | stainless steel 316L/1.4404 |
Seal:
| FPM |
| Dimension A | 17 mm |
| Dimension B | 14 mm |
| Dimension C | 8 mm |
| Dimension D | 3.9 mm |
| Air at 20 C°, 200 mbar differential pressure: | 1.2 m3/h |
| Pore size: | 0.02 mm |
| Ring: | stainless steel 304/1.4301 |
| Filter: | stainless steel 316L/1.4404 |
Seal:
| FPM |
| Dimension A | 26 mm |
| Dimension B | 23 mm |
| Dimension C | 8 mm |
| Dimension D | 3.9 mm |
| Air at 20 C°, 200 mbar differential pressure: | 4.2 m3/h |
| Pore size: | 0.02 mm |
| Ring: | stainless steel 304/1.4301 |
| Filter: | stainless steel 316L/1.4404 |
Seal:
| FPM |
| Dimension A | 41 mm |
| Dimension B | 38 mm |
| Dimension C | 8 mm |
| Dimension D | 3.9 mm |
| Air at 20 C°, 200 mbar differential pressure: | 11.3 m3/h |
| Pore size: | 0.02 mm |
| Ring: | stainless steel 304/1.4301 |
| Filter: | stainless steel 316L/1.4404 |
Seal:
| FPM |
| Dimension A | 52 mm |
| Dimension B | 48 mm |
| Dimension C | 8 mm |
| Dimension D | 3.9 mm |
| Air at 20 C°, 200 mbar differential pressure: | 18.1 m3/h |
| Pore size: | 0.02 mm |
| Ring: | stainless steel 304/1.4301 |
| Filter: | stainless steel 316L/1.4404 |
Seal:
| FPM |
Part Number
| Part Number | Description | |
| DN10 ISO-KF | 211-089 | Centering ring with filter DN10 ISO-KF |
| DN16 ISO-KF | 211-090 | Centering ring with filter DN16 ISO-KF |
| DN25 ISO-KF | 211-092 | Centering ring with filter DN25 ISO-KF |
| DN40 ISO-KF | 211-094 | Centering ring with filter DN40 ISO-KF |
| DN50 ISO-KF | 211-095 | Centering ring with filter DN50 ISO-KF |
