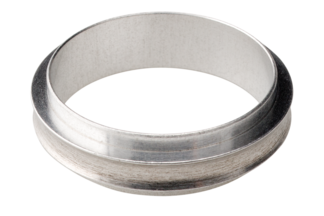

4. Centering Ring - Stainless Steel 303
ISO-KF

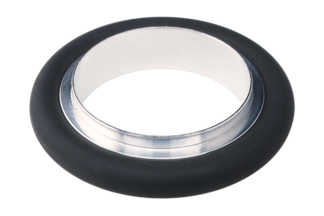

Centering Ring - Stainless Steel 303

Centering-Ring

Product configurator

Gemini™ MxG5xx

Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Your configuration
inficon-gauge
Gemini™ MxG5xx
Unit
mbar
Flange
DN 16 ISO-KF
Display switching functions
None
Electrical Connection
FCC, 8-pin
Digital Interface
None
Measurement range
1.2 - 8.68 V
Request
Personal information

You can unsubscribe from these communications at any time. For more information please review our Privacy Policy.

Product
inficon-gauge
Gemini™ MxG5xx
Gemini™ MAG500
Your configuration has been successfully sent!
Back

INFICON ISO-KF fittings are manufactured according to ISO 2861/1, DIN 28403 and Pneurop 6606. Our quality fittings are the standard components for all vacuum and high vacuum applications. The high quality INFICON components are designed and tested for leak rates less than 1 x 10-9 mbar l/s.




Specifications

DN 10 ISO-KF
DN 16 ISO-KF
DN 20 ISO-KF
DN 25 ISO-KF
DN 32 ISO-KF
DN 40 ISO-KF
DN 50 ISO-KF
Dimension A12
Dimension B10
Dimension C8
Dimension D3.9
Ring:303 / 1.4305
Seal:CR, FPM, NBR, EPDM, VMQ
Dimension A17
Dimension B16
Dimension C8
Dimension D3.9
Ring:303 / 1.4305
Seal:CR, FPM, NBR, EPDM, VMQ
Dimension A22
Dimension B20
Dimension C8
Dimension D3.9
Ring:303 / 1.4305
Seal:CR, FPM, NBR, EPDM, VMQ
Dimension A26
Dimension B25
Dimension C8
Dimension D3.9
Ring:303 / 1.4305
Seal:CR, FPM, NBR, EPDM, VMQ
Dimension A34
Dimension B32
Dimension C8
Dimension D3.9
Ring:303 / 1.4305
Seal:CR, FPM, NBR, EPDM, VMQ
Dimension A41
Dimension B40
Dimension C8
Dimension D3.9
Ring:303 / 1.4305
Seal:CR, FPM, NBR, EPDM, VMQ
Dimension A52
Dimension B50
Dimension C8
Dimension D3.9
Ring:303 / 1.4305
Seal:CR, FPM, NBR, EPDM, VMQ
Download full specifications

Part Number

 Part NumberDescription
Seal: CR211-672Centering ring DN 10 ISO-KF, Inox / CR
 211-673Centering ring DN 16 ISO-KF, Inox / CR
 211-674Centering ring DN 20 ISO-KF, Inox / CR
 211-675Centering ring DN 25 ISO-KF, Inox / CR
 211-676Centering ring DN 32 ISO-KF, Inox / CR
 211-677Centering ring DN 40 ISO-KF, Inox / CR
 211-678Centering ring DN 50 ISO-KF, Inox / CR
Seal: EPDM211-686Centering ring DN 10 ISO-KF, Inox / EPDM
 211-687Centering ring DN 16 ISO-KF, Inox / EPDM
 211-688Centering ring DN 20 ISO-KF, Inox / EPDM
 211-689Centering ring DN 25 ISO-KF, Inox / EPDM
 211-690Centering ring DN 32 ISO-KF, Inox / EPDM
 211-691Centering ring DN 40 ISO-KF, Inox / EPDM
 211-692Centering ring DN 50 ISO-KF, Inox / EPDM
Seal: FPM211-065Centering ring DN 10 ISO-KF, Inox / FPM
 211-066Centering ring DN 16 ISO-KF, Inox / FPM
 211-067Centering ring DN 20 ISO-KF, Inox / FPM
 211-068Centering ring DN 25 ISO-KF, SS/FPM
 211-069Centering ring DN 32 ISO-KF, Inox / FPM
 211-070Centering ring DN 40 ISO-KF,SS/FPM
 211-071Centering ring DN 50 ISO-KF, SS/FPM
Seal: NBR211-679Centering ring DN 10 ISO-KF, Inox / NBR
 211-680Centering ring DN 16 ISO-KF, Inox / NBR
 211-681Centering ring DN 20 ISO-KF, Inox / NBR
 211-682Centering ring DN 25 ISO-KF, Inox / NBR
 211-683Centering ring DN 32 ISO-KF, Inox / NBR
 211-684Centering ring DN 40 ISO-KF, Inox / NBR
 211-685Centering ring DN 50 ISO-KF, Inox / NBR
Seal: VMQ211-693Centering ring DN 10 ISO-KF, Inox / VMQ
 211-694Centering ring DN 16 ISO-KF, Inox / VMQ
 211-695Centering ring DN 20 ISO-KF, Inox / VMQ
 211-696Centering ring DN 25 ISO-KF, Inox / VMQ
 211-697Centering ring DN 32 ISO-KF, Inox / VMQ
 211-698Centering ring DN 40 ISO-KF, Inox / VMQ
 211-699Centering ring DN 50 ISO-KF, Inox / VMQ
