1. Centering Ring, aluminum
ISO-KF

Centering Ring, aluminum

Centering-Ring
Drop-in Options

Revolutionize your vacuum gauge experience with us!

Discover more

Product configurator

Gemini™ MxG5xx

Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Your configuration
inficon-gauge
Gemini™ MxG5xx
Flange
DN 16 ISO-KF
Switching functions
None
Electrical Connection
FCC, 8-pin
Digital Interface
None
Measurement range
1.2 - 8.68 V
Request
Personal information

You can unsubscribe from these communications at any time. For more information please review our Privacy Policy.

Product
inficon-gauge
Gemini™ MxG5xx
Gemini™ MAG500
Your configuration has been successfully sent!
Back

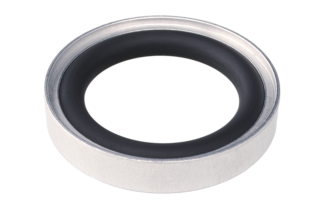

INFICON ISO-KF fittings are manufactured according to ISO 2861/1, DIN 28403 and Pneurop 6606. Our quality fittings are the standard components for all vacuum and high vacuum applications. The high quality INFICON components are designed and tested for leak rates less than 1 x 10-9 mbar l/s.



Advantages

  • Competitively priced
  • World wide logistics
  • Design and measures follow strictly international respected standards
  • 2011/65/EU RoHS compliant

Specifications

DN10 ISO-KF
DN16 ISO-KF
DN20 ISO-KF
DN25 ISO-KF
DN32 ISO-KF
DN40 ISO-KF
DN50 ISO-KF
Massangabe A12 mm
Massangabe B10 mm
Massangabe C8 mm
Massangabe D3.9 mm
Ring:aluminum

Seal:



CR, FPM, NBR, EPDM, VMQ

Dimension Drawing

Dimension Drawing
Massangabe A17 mm
Massangabe B16 mm
Massangabe C8 mm
Massangabe D3.9 mm
Ring:aluminum

Seal:



CR, FPM, NBR, EPDM, VMQ

Dimension Drawing

Dimension Drawing
Massangabe A22 mm
Massangabe B20 mm
Massangabe C8 mm
Massangabe D3.9 mm
Ring:aluminum

Seal:



CR, FPM, NBR, EPDM, VMQ

Dimension Drawing

Dimension Drawing
Massangabe A26 mm
Massangabe B25 mm
Massangabe C8 mm
Massangabe D3.9 mm
Ring:aluminum

Seal:



CR, FPM, NBR, EPDM, VMQ

Dimension Drawing

Dimension Drawing
Massangabe A34 mm
Massangabe B32 mm
Massangabe C8 mm
Massangabe D3.9 mm
Ring:aluminum

Seal:



CR, FPM, NBR, EPDM, VMQ

Dimension Drawing

Dimension Drawing
Massangabe A41 mm
Massangabe B40 mm
Massangabe C8 mm
Massangabe D3.9 mm
Ring:aluminum

Seal:



CR, FPM, NBR, EPDM, VMQ

Dimension Drawing

Dimension Drawing
Massangabe A52 mm
Massangabe B50 mm
Massangabe C8 mm
Massangabe D3.9 mm
Ring:aluminum

Seal:



CR, FPM, NBR, EPDM, VMQ

Dimension Drawing

Dimension Drawing
Download full specifications

Part Number

CR
FPM
NBR
EPDM
VMQ
Part NumberDescription
211-051Centering ring DN10 ISO-KF, Al/CR
211-052Centering ring DN16 ISO-KF, Al/CR
211-053Centering ring DN20 ISO-KF, Al/CR
211-054Centering ring DN25 ISO-KF, Al/CR
211-055Centering ring DN32 ISO-KF, Al/CR
211-056Centering ring DN40 ISO-KF, Al/CR
211-057Centering ring DN50 ISO-KF, Al/CR
Part NumberDescription
211-058Centering ring DN10 ISO-KF, Al/FPM
211-059Centering ring DN16 ISO-KF, Al/FPM
211-060Centering ring DN20 ISO-KF, Al/FPM
211-061Centering ring DN25 ISO-KF, Al/FPM
211-062Centering ring DN32 ISO-KF, Al/FPM
211-063Centering ring DN40 ISO-KF, Al/FPM
211-064Centering ring DN50 ISO-KF, Al/FPM
Part NumberDescription
211-651Centering ring DN10 ISO-KF, Al/NBR
211-652Centering ring DN16 ISO-KF, Al/NBR
211-653Centering ring DN20 ISO-KF, Al/NBR
211-654Centering ring DN25 ISO-KF, Al/NBR
211-655Centering ring DN32 ISO-KF, Al/NBR
211-656Centering ring DN40 ISO-KF, Al/NBR
211-657Centering ring DN50 ISO-KF, Al/NBR
Part NumberDescription
211-658Centering ring DN10 ISO-KF, Al/EPDM
211-659Centering ring DN16 ISO-KF, Al/EPDM
211-660Centering ring DN20 ISO-KF, Al/EPDM
211-661Centering ring DN25 ISO-KF, Al/EPDM
211-662Centering ring DN32 ISO-KF, Al/EPDM
211-663Centering ring DN40 ISO-KF, Al/EPDM
211-664Centering ring DN50 ISO-KF, Al/EPDM
Part NumberDescription
211-665Centering ring DN10 ISO-KF, Al/VMQ
211-666Centering ring DN16 ISO-KF, Al/VMQ
211-667Centering ring DN20 ISO-KF, Al/VMQ
211-668Centering ring DN25 ISO-KF, Al/VMQ
211-669Centering ring DN32 ISO-KF, Al/VMQ
211-670Centering ring DN40 ISO-KF, Al/VMQ
211-671Centering ring DN50 ISO-KF, Al/VMQ
We require your consent for video content
More Information
