ISO-KF

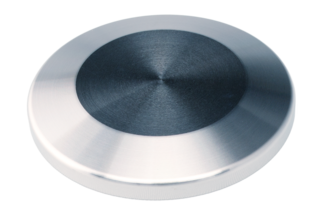

Blank Flange - Stainless Steel 316L

Blank-Flange

Product configurator

Gemini™ MxG5xx

Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Your configuration
inficon-gauge
Gemini™ MxG5xx
Unit
mbar
Flange
DN 16 ISO-KF
Display switching functions
None
Electrical Connection
FCC, 8-pin
Digital Interface
None
Measurement range
1.2 - 8.68 V
Request
Personal information
Product
inficon-gauge
Gemini™ MxG5xx
Gemini™ MAG500
Your configuration has been successfully sent!

INFICON ISO-KF fittings are manufactured according to ISO 2861/1, DIN 28403 and Pneurop 6606. Our quality fittings are the standard components for all vacuum and high vacuum applications. The high quality INFICON components are designed and tested for leak rates less than 1 x 10-9 mbar l/s.



Advantages

  • Competitively priced
  • World wide logistics
  • Design and measures follow strictly international respected standards
  • 2011/65/EU RoHS compliant

Specifications

TypeDimension AMaterial:
DN 10 ISO-KF5Stainless Steel 316L/1.4404
DN 16 ISO-KF5Stainless Steel 316L/1.4404
DN 25 ISO-KF5Stainless Steel 316L/1.4404
DN 40 ISO-KF5Stainless Steel 316L/1.4404
DN 50 ISO-KF6Stainless Steel 316L/1.4404

Part Number

 Part NumberDescription
DN 10 ISO-KF211-791Blind flange, 316L, DN 10 ISO-KF
DN 16 ISO-KF211-792Blind flange, 316L, DN 16 ISO-KF
DN 25 ISO-KF211-793Blind flange, 316L, DN 25 ISO-KF
DN 40 ISO-KF211-794Blind flange, 316L, DN 40 ISO-KF
DN 50 ISO-KF211-795Blind flange, 316L, DN 50 ISO-KF
