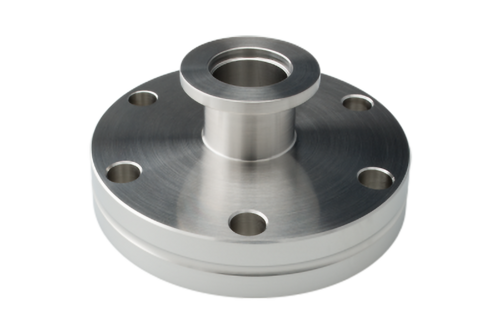

INFICON CF quality fittings are manufactured according to ISO 3669 and the latest TS/ ISO 3669-2 standard. INFICON Ultra high vacuum fittings are designed for applications down to 1 x 10-12 mbar and bakeout temperatures up to 400°C.

Advantages

  • World wide logistics
  • Design and measures follow strictly international respected standards
  • Surface finish, welds, material specifications and cleanliness meet or exceed high vacuum specifications
  • 2011/65/EU RoHS compliant

Specifications

TypeDimension ADimension BMaterial
DN 16 ISO-KF / 16 CF-F3516Stainless Steel 304L / 1.4306
DN 25 ISO-KF / 16 CF-F3516Stainless Steel 304L / 1.4306
DN 16 ISO-KF / 40 CF-F3016Stainless Steel 304L / 1.4306
DN 25 ISO-KF / 40 CF-F3026Stainless Steel 304L / 1.4306
DN 40 ISO-KF / 40 CF-F5037Stainless Steel 304L / 1.4306
DN 40 ISO-KF / 63 CF-F3541Stainless Steel 304L / 1.4306
DN 40 ISO-KF / 100 CF-F5041Stainless Steel 304L / 1.4306

Part Number

 Part NumberDescription
DN 16 ISO-KF / 16 CF-F213-251Transition piece, inox, DN 16CF / 16KF
DN 16 ISO-KF / 40 CF-F213-254Transition piece, inox, DN 40CF / 16KF
DN 25 ISO-KF / 16 CF-F213-252Transition piece, inox, DN 16CF / 25KF
DN 25 ISO-KF / 40 CF-F213-255Transition piece, inox, DN 40CF / 25KF
DN 40 ISO-KF / 100 CF-F213-262Transition piece DN 100 CF/40 ISO-KF
DN 40 ISO-KF / 40 CF-F213-256Transition piece, inox, DN 40CF / 40KF
DN 40 ISO-KF / 63 CF-F213-259Transition piece, inox, DN 63CF / 40KF
