HAPSITE® CDT
Chemical Identification System
HAPSITE CDT provides versatility for military, civilian and hazardous response teams to identify and quantify narcotics, Chemical Warfare Agents (CWA), Fourth Generation Agents (FGA), explosives and toxic industrial chemical threats on-site to develop critical health risk assessments, quickly.
HAPSITE CDT delivers accurate, lab-quality results in minutes to make threat assessments, and decisions with confidence.
HAPSITE CDT ensures certainty in uncertain times. At the push of a button, its versatility allows military, law enforcement, civilian and hazardous response teams to accurately identify and quantify trace amounts of compounds such as:
- Narcotics and difficult-to-identify fentanyl derivatives
- Chemical warfare agents (CWA)
- Fourth generation agents (FGA)
- Pharmaceutical based agents (PBA)
- Toxic industrial materials (TIM) and toxic industrial compounds (TIC)
- Volatile organic compounds (VOC)
- Heavy semi-volatile organic compounds (SVOC)
- Explosives

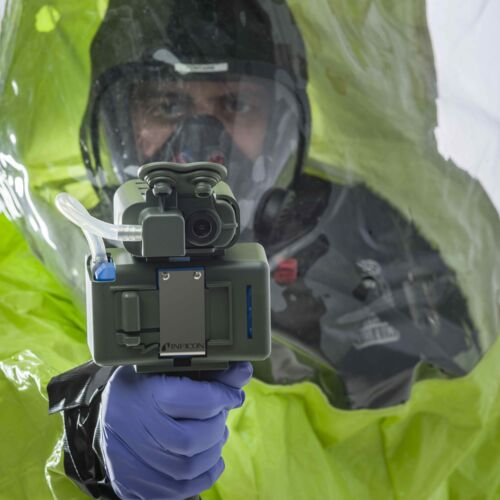

Traveling through a hazardous site with PPE is difficult. The new handheld cartridge-based sampling system provides efficiency and portability for users so they can carry lighter equipment, quickly, and get multiple samples analyzed on-site. Each HAPSITE CDT is equipped with one Remote Sample Collector, and additional Remote Sample Collectors are available as accessories. This provides greater portability and allows response teams to gather more samples to be analyzed at one central location.
HAPSITE CDT is designed to adapt to the needs of hazardous response teams that require fast analysis. Its new, modern user interface is designed for both new and experienced users. Inexperienced users can be trained in minutes to collect samples, so results and health assessments can be shared quickly for correct safety measures to be taken.
Features
- Sensitivity/Trace Level Detection
- Expanded Mass Range/narcotic and FGA/A-series detection
- Cartridge concentrator/portable collection
- Intuitive, easy-to-use software/minimal training
- Optimized sample path/reproducible and quantifiable data
Specifications
| Dimensions | 51.3 x 50.4 x 20.0 (cm) 20.2 x 19.8 x 7.9 (in) |
| Weight - analytical module | 19.2 kg/42.3 lbs. |
| Weight - remote sample collector | 1.5 kg/3.3 lbs. |
| Operating Temperature | 0-45°C 32-113°F |
| Operating Humidity | 5-95% relative humidity |
| Power Supply | 24 VDC Ext Power, 28 VDC LI-Ion Battery |
| Battery Life | 5 hours with analysis mode (2 batteries) |
| Sample Inlets | Air cartridge, syringe injector |
| Mass Range | 10-424 AMU (1-424 AMU in SIM Mode) |
| External Communications | 802.11G, USB, GPS, Ethernet |
| Start-Up Time | <15 minutes |
| Mass Analyzer Type | Quadrupole |
| Vacuum System | Non-evaporable getter (NEG) pump/ion pump and optical mechanical pumping accessory |
| Libraries | AMDIS with configurable targeted library. NIST, NIOSH |
| Certifications | CE, IP65 (pending) |
| Warranty | 2 years included |
