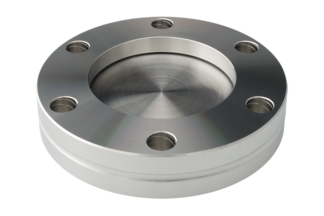

Flange with Tube Rotatable - Stainless Steel 304L

Product configurator
Gemini™ MxG5xx
Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Request
Your configuration has been successfully sent!
INFICON CF quality fittings are manufactured according to ISO 3669 and the latest TS/ ISO 3669-2 standard. INFICON Ultra high vacuum fittings are designed for applications down to 1 x 10-12 mbar and bakeout temperatures up to 400°C.
Advantages
- World wide logistics
- Design and measures follow strictly international respected standards
- Surface finish, welds, material specifications and cleanliness meet or exceed high vacuum specifications
- 2011/65/EU RoHS compliant
Specifications
Type | Dimension A | Dimension B | Dimension C | Dimension D | Material: |
DN 16 CF | 38 | 17.2 | 18 | 1 | Stainless steel 304L / 1.4306 |
DN 40 CF | 63 | 39.5 | 40 | 1.6 | Stainless steel 304L / 1.4306 |
DN 63 CF | 105 | 66 | 70 | 2 | Stainless steel 304L / 1.4306 |
DN 100 CF | 135 | 104 | 108 | 2 | Stainless steel 304L / 1.4306 |
DN 160 CF | 167 | 155 | 159 | 2 | Stainless steel 304L / 1.4306 |
Part Number
Part Number | Description | |
DN 100 CF | 213-064 | Flange with pipe socket |
DN 16 CF | 213-061 | Welding flange with tube socket |
DN 160 CF | 213-065 | Flange with pipe socket |
DN 40 CF | 213-062 | Flange with tube socket |
DN 63 CF | 213-063 | Welding flange rotatable with |
