4. Blank Flange - Stainless Steel 304L
CF

Blank Flange - Stainless Steel 304L

Blank-Flange-Stainless-Steel-304L

Product configurator

Gemini™ MxG5xx

Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Your configuration
inficon-gauge
Gemini™ MxG5xx
Flange
DN 16 ISO-KF
Switching functions
None
Electrical Connection
FCC, 8-pin
Digital Interface
None
Measurement range
1.2 - 8.68 V
Request
Personal information

You can unsubscribe from these communications at any time. For more information please review our Privacy Policy.

Product
inficon-gauge
Gemini™ MxG5xx
Gemini™ MAG500
Your configuration has been successfully sent!
Back

INFICON CF quality fittings are manufactured according to ISO 3669 and the latest TS/ ISO 3669-2 standard. INFICON ultra-high vacuum fittings are designed for applications down to 1 x 10-12 mbar and bakeout temperatures up to 400°C.

Advantages

  • Design and measures follow strict international respected standards
  • Surface finish, welds, material specifications and cleanliness meet or exceed high vacuum specifications
  • 2011/65/EU RoHS compliant

Specifications

TypeDimension ADimension BDimension CMaterial:
DN 16 CF7.5141.4Stainless steel 304L / 1.4306
DN 40 CF13381.4Stainless steel 304L / 1.4306
DN 63 CF17.5661.4Stainless steel 304L / 1.4306
DN 100 CF201041.4Stainless steel 304L / 1.4306
DN 160 CF221551.4Stainless steel 304L / 1.4306
DN 200 CF24.52051.4Stainless steel 304L / 1.4306
DN 250 CF24.52561.4Stainless steel 304L / 1.4306

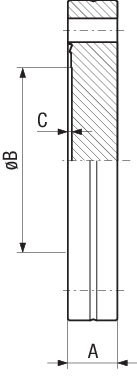

Dimension Drawing

Dimension Drawing

Part Number

 Part NumberDescription
DN 100 CF213-004Blanking flange DN 100 CF-F
DN 16 CF213-001Blanking flange DN 16 CF-F
DN 160 CF213-005Blanking flange DN 160 CF-F
DN 200 CF213-006Blanking flange DN 200 CF-F
DN 250 CF213-007Blanking flange DN 250 CF-F
DN 40 CF213-002Blind flange DN 40 CF-F
DN 63 CF213-003Blanking flange DN 63 CF-F
