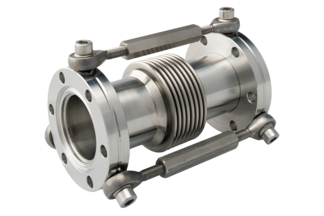

Federbalg CF

Product configurator
Gemini™ MxG5xx
Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Request
Your configuration has been successfully sent!
Hochwertige CF-Anschlüsse von INFICON werden gemäß ISO 3669 und dem neuesten Standard TS/ISO 3669-2 gefertigt. Ultrahochvakuum-Anschlüsse von INFICON sind für Anwendungen bis herab auf 1 x 10-12 mbar und für Ausheiztemperaturen bis zu 400 °C ausgelegt.
Vorteile
- Weltweite Logistik
- Design und Maßnahmen richten sich strikt nach international anerkannten Standards
- Oberflächenfinish, Schweißstellen, Materialspezifikationen und Reinheit erfüllen oder übertreffen Spezifikationen für Hochvakuum
- 2011/65/EC RoHS-konform
Technische Daten
Typ | DN 16 CF | DN 40 CF | DN 63 CF | DN 100 CF | DN 160 CF |
Dimension A | 76 | 126 | 139 | 142 | 250 |
Dimension B | 1.5 | 2 | 2 | 2 | 3 |
Dimension C | 1.5 | 2 | 2 | 2 | 3 |
Dimension D | 15 | 40 | 62 | 92 | 154 |
Dimension E | 22 | 55 | 80 | 116 | 187 |
Dimension F | 16 | 36.8 | 66 | 102 | 153 |
Dimension G | 21° | 7.5° | 37° | 28° | 16° |
Flansche: | Stainless steel 304L / 1.4306 | Stainless steel 304L / 1.4306 | Stainless steel 304L / 1.4306 | Stainless steel 304L / 1.4306 | Stainless steel 304L / 1.4306 |
Bälge: | Stainless Steel 316 Ti / 1.4571 | Stainless Steel 316 Ti / 1.4571 | Stainless Steel 316 Ti / 1.4571 | Stainless Steel 316 Ti / 1.4571 | Stainless Steel 316 Ti / 1.4571 |
Innendruck: | 4 | Max. 4 bar | Max. 1.5 bar | Max. 1.5 bar | Max. 1.5 bar |
A= | Unstressed length | Unstressed length | Unstressed length | Unstressed length | Unstressed length |
Artikelnummer
Artikelnummer | Beschreibung | |
DN 100 CF | 213-354 | Bellows with flanges |
DN 16 CF | 213-351 | Bellows with flanges DN 16 CF |
DN 160 CF | 213-355 | Bellows with flanges |
DN 40 CF | 213-352 | Bellows with flanges DN 40 CF |
DN 63 CF | 213-353 | Bellows with flanges |
