コントローラ

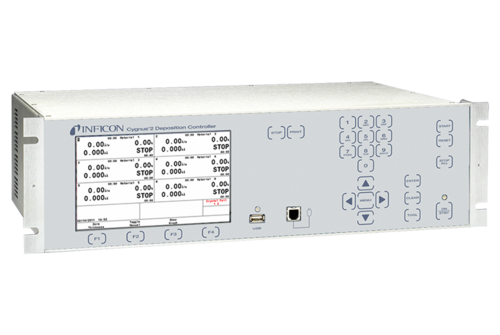

Cygnus® 2

OLEDアプリケーション向けの最高の測定精度

cygnus

Product configurator

Gemini™ MxG5xx

Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Your configuration
inficon-gauge
Gemini™ MxG5xx
Flange
DN 16 ISO-KF
Switching functions
None
Electrical Connection
FCC, 8-pin
Digital Interface
None
Measurement range
1.2 - 8.68 V
Request
Personal information
Product
inficon-gauge
Gemini™ MxG5xx
Gemini™ MAG500
Your configuration has been successfully sent!

Cygnus 2薄膜蒸着コントローラーは、実証済みのINFICONの薄膜コントローラーの性能と、OLEDプロセスを最大限に活用できるように設計された、ユニークな機能を組み合わせることにより、ひときわ優れた価値を提供します。Cygnus 2は、市場をリードする当社のModeLock周波数計測システムを使用して、1/10秒毎に0.00433 Å/sという分解能を持つ、安定した高分解能の蒸着速度および膜厚計測を実現します。Cygnus 2と同等の優れた再現性を可能にする性能、品質、機能は、他のどの水晶振動子コントローラーにもありません。

機能

  • INFICONのModeLock技術は最も安定であり、非常に低い蒸着速度であっても最高の分解能と膜厚計測を可能にします。
  • 自動Zは、材料の蒸着が進むとともにZ比率を自動的に決定し、膜厚の精度を向上させる
  • 6つのソースまで同時にコントロールできるので、単独で、または1台のCygnus 2と組み合わせることにより、2台または3台のコントローラーが必要とされる箇所に対応
  • カラーTFT LCDディスプレイがプロセスで何が起きているかを見やすく表示
  • 10 Hzの測定
  • 100msサンプルで±0.0035 Hz
  • スクリーンショット、処方の保存、データログ用のUSBデータストレージ
  • 複数ソースの膜厚を合計
  • 低濃度で超低蒸着速度の材料の計測レートを平均化 (超低蒸着速度のOLEDドーパント材料蒸着において、安定したソースで最長30秒間)
  • 0.001Åまでの蒸着速度分解能で表示
  • 4メートルのXIUオプションは、大規模システム用に、長い真空内センサーケーブルの使用を可能にする
  • 非蒸着コントロールによって、基盤が蒸着チャンバーを繰り返し通過する際に、継続的なソースコントロールを行える
  • 標準で6基のDAC出力(オプションで6基追加)により、ソースコントロール、蒸着速度、または膜厚監視を行える
  • オプションのイーサーネット通信機能
  • RoHS対応

仕様

測定性能
厚さおよび速度分解能/測定(1)±0.00433 Å
測定頻度範囲6.0 to 4.5 MHz (fixed)
プロセス処方・データ管理
材料プログラム6 independent materials
ソース数 (2)up to 6

(1) Tooling/density = 100/1、基本周波数 = 6 MHz
(2) Cygnus 2には、6系統のDAC出力基準があり、オプションとしてさらに6系統を追加できます。  12のうちいずれもソース制御電圧または

パーツ番号

アクセサリー
アクセサリー & スペアパーツ
消耗品
NameDescription
Front Load Single SensorFront Load Single Sensor
Front Load Dual SensorFront Load Dual Sensor
Cool Drawer Single SensorCool Drawer Single Sensor
Cool Drawer Dual SensorCool Drawer Dual Sensor
Low Profile Single SensorLow Profile Single Sensor
Easy Rate Dual SensorEasy Rate Dual Sensor
Low Profile Dual SensorLow Profile Dual Sensor
ALD SensorALD Sensor
UHV Bakeable SensorUHV Bakeable Sensor
Sputtering SensorSputtering Sensor
CrystalSix® SensorCrystalSix® Sensor
Crystal 12® SensorCrystal 12® Sensor
Easy Rate Single SensorEasy Rate Single Sensor
RSH-600 Rotary SensorRSH-600 Rotary Sensor
Part NumberDescription
779-220-G1CrystalTwo® Switch, 15.2 cm (6 in.) BNC Cables
779-220-G2CrystalTwo® Switch, 50.8 cm (20 in.) BNC Cables
Oscillator kits(Includes oscillator and cables)
781-611-G15XIU PKG with 4.6 m (15 ft.) cable - For use with Cygnus 2, IC6, or XTC/3
781-611-G30XIU PKG with 9.1 m (30 ft.) cable - For use with Cygnus 2, IC6, or XTC/3
781-611-G50XIU PKG with 15.2 m (50 ft.) cable - For use with Cygnus 2, IC6, or XTC/3
781-611-G100XIU PKG with 30.5 m (100 ft.) cable - For use with Cygnus 2, IC6, or XTC/3
781-612-G154m XIU PKG with 4.6 m (15 ft.) XIU cable - Includes 4 m in-vacuum cable and 6 in. BNC (XIU to feedthrough) cable - For use with Cygnus 2, IC6, or XTC/3
781-612-G304m XIU PKG with 9.1 m (30 ft.) XIU cable - Includes 4 m in-vacuum cable and 6 in. BNC (XIU to feedthrough) cable - For use with Cygnus 2, IC6, or XTC/3
781-612-G504 m XIU PKG with 15.2 m (50 ft.) XIU cable - Includes 4 m in-vacuum cable and 6 in. BNC (XIU to feedthrough) cable - For use with Cygnus 2, IC6, or XTC/3
781-612-G1004m XIU with 30.5 m (100 ft.) XIU cable - Includes 4 m in-vacuum cable and 6 in. BNC (XIU to feedthrough) cable - For use with Cygnus 2, IC6, or XTC/3
781-613-G154m XIU PKG with 4.6 m (15 ft.) XIU cable - Includes 3.5 m in-vacuum cable and 20 in. BNC (XIU to feedthrough) cable - For use with Cygnus 2, IC6, or XTC/3
781-613-G304m XIU PKG with 9.1 m (30 ft.) XIU cable - Includes 3.5 m in-vacuum cable and 20 in. BNC (XIU to feedthough) cable - For use with Cygnus 2, IC6, or XTC/3
781-613-G504m XIU PKG with 15.2 m (50 ft.) XIU cable - Includes 3.5 m in-vacuum cable and 20 in. BNC (XIU to feedthrough) cable - For use with Cygnus 2, IC6, or XTC/3
781-613-G1004m XIU PKG with 30.5 m (100 ft.) XIU cable - Includes 3.5 m in-vacuum cable and 20 in. BNC (XIU to feedthrough) cable - For use with Cygnus 2, IC6, or XTC/3
Oscillator Only(No cables included)
781-600-G1XIU (oscillator) - For XIU to sensor head cable lengths of 15 to 183 cm (6 to 72 in.) - For use with Cygnus 2, IC6, or XTC/3
781-600-G2XIU (oscillator) - for XIU to sensor head cable lengths of 3 to 4 m (118 to 157 in.) - For use with Cygnus 2 or IC6
Cables
755-257-G615.2 cm (6 in.) BNC cable, XIU to vacuum feedthrough
600-1261-P154.6 m (15 ft.) cable, Cgynus 2, IC6 or XTC/3 controller to XIU
600-1261-P309.1 m (30 ft.) cable, Cygnus 2, IC6 or XTC/3 controller to XIU
600-1261-P5015.2 m (50 ft.) cable, Cygnus 2, IC6 or XTC/3 controller to XIU
600-1261-P10030.5 (100 ft.) cable, Cygnus 2, IC6 or XTC/3 controller to XIU
NameDescription
Quartz Monitor CrystalsQuartz Monitor Crystals
