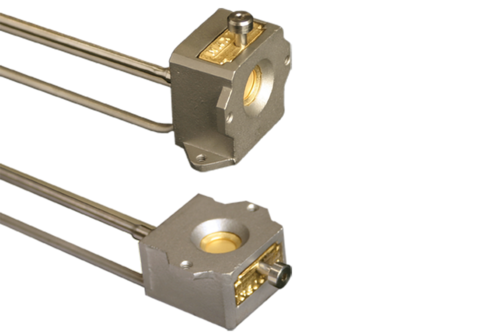

Cool Drawerシングルセンサーは振動子が横からセンサー内に取り付けられており、前面搭載の振動子を取り付けるにはスペースが足りない場合に便利です。Cool Drawerシングルセンサーは、水冷ハウジングを使用して熱的にシールドされたCool Drawer振動子ホルダーを採用しており、振動子が優れた性能を発揮できるようにしています。

機能

  • 内部ケーブルなし
  • Cool Drawer振動子ホルダー
  • 取り付けが容易
  • 溶接済みCF40フランジと一緒に注文すればベーク可能
  • CF40フィードスルーおよび2.54 cm (1インチ)ボルトフィードスルーとともに利用可能
  • 圧力継手と一緒に注文すれば長さの調整が可能
  • 圧力継手と一緒に注文すればろう付けが不要
  • お客様指定の長さに溶接済みのセンサー/フィードスルーの組合せあり

仕様

冷却水Minimum water flow of 150 to 200 cm³/min using 1/8 in. O.D. tube, 30°C max. (Do not allow to freeze)
材料304 stainless steel, Teflon, ceramic, beryllium nickel
1インチボルトおよび圧縮フィッテイング末端:
温度Operational environment to 300° C with water cooling or 165° C without
仕様の詳細はこちらからダウンロードできます。
アクセサリー
消耗品
Part NumberDescription
750-420-G1Solenoid Valve, 24V (for use with shuttered and multi-crystal sensors)
NameDescription
Quartz Monitor CrystalsQuartz Monitor Crystals

スペアパーツ

Part NumberDescription
123259Cool Drawer Sensor Crystal Retainer
123260Cool Drawer Sensor Drawer and Retainer Combo
123417Shutter bracket
123418Bellows cover
147207Bellows and cover assembly (Includes all parts marked with *)
147202PSV100 PNEUMATIC VALVE 12 VDC
147403* Actuator
147406* Bellows support
147407* Bellows Cover
147408* Threaded shaft
147411Spacer
147424* Bellows tube
084-026* Hex nut
084-064* Lockwasher
084-205* #4-40 x 3/16 Phillips screw
800128#4 Lockwasher
800371Shoulder Screw
800372Washer
800416* 6-32 x 3/16 in. set screw
803313* Spring
123223-1Conduit Brazed assembly - long pin
123223-2Conduit brazed assembly - short pin
123419Shutter
147206-2* Bellows with 35 in. tube
803102O-ring for 5 port adjustable feedthrough
803261Washer for 5 port adjustable feedthrough
