Easy Rate 싱글 센서는 비용을 최소화하면서 생산을 극대화할 수 있습니다. 이러한 센서는 센서 수명을 늘리고 유지보수를 줄여 가용성을 극대화하고, 가장 적은 초기 투자 비용과 총 소유 비용으로 생산 비용을 최소화합니다. 현장에서 편리하게 교체할 수 있는 부품을 사용하는 신뢰할 수 있는 센서입니다.

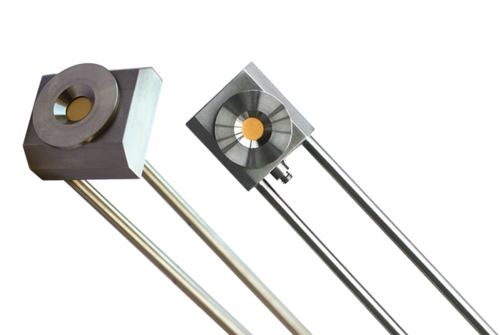

두께 모니터링을 위한 가장 비용 효율적인 솔루션을 제공하는 INFICON Easy Rate 싱글 센서는 표준 및 직각 방향에서도 사용할 수 있고 표준 튜브 피팅이 있거나 없는 피드스루가 포함되도록 구성될 수 있습니다.

참고: Easy Rate 싱글 센서는 4.8 mm(3/16인치) 외경의 수냉 튜브를 사용합니다.  이 센서는 Ultra-Torr 장착 피드스루와 호환되지 않으며 4.8 mm(3/16인치) 외경의 수냉 튜브와 함께 표준 피드스루에 용접하기 위해 튜브 어댑터가 필요합니다.

특징

  • Minimum investment with lowest upfront cost
  • Lowest total cost of ownership from extended sensor life
  • Maximum throughput with less maintenance
  • Easy installation
  • Available in standard and right angle configurations
  • Optional shutter available
  • Sensor / Feedthrough combinations available with or without bored-through tube fittings

사양서

최소 수류의 최대 작동 등온 환경 온도400° C
크리스탈 교환Front loading; self-contained package for ease of exchange
Water TubesS-304, 4.76 mm (0.188 in) OD x 0.51 mm (0.020 in.) wall thickness seamless stainless steel tubing
Feedthrough Specifications-1 in. Bolt
재료304 stainless steel, Teflon®, ceramic, beryllium nickel, VITON®
온도Operational environment to 300° C with water cooling or 165° C without
장착1.015 in. ±0.010 in. diameter aperture
전체 사양 다운로드

악세사리

Accessories
Consumables
Spare Parts
NameDescription
Easy Rate Sensor FeedthroughsEasy Rate Sensor Feedthroughs
NameDescription
Quartz Monitor CrystalsQuartz Monitor Crystals
Part NumberDescription
784-205-G1Crystal Retainer Assembly
784-204-G1Crystal Holder Assembly
784-403-P1Crystal Finger Spring
784-404-P1Retaining Ring
784-300-P1Crystal Holder
784-405-P1Holder Finger Spring
750-174-P2Female coax
080-011-P3SCREW 0-80 x .125 LG SLOT PAN HD SS GP
080-013#0-80 Split washer
784-209-G1Shutter Kit, Single (Unassembled Parts)
784-305-P1Easy Rate Single Sensor Shutter
784-206-G1Easy Rate Sensor Actuator Assembly
784-306-P1Easy Rate Sensor Actuator Clamp
084-054SSplit Washer #4 Stainless Steel Spare
084-027Socket Screw
783-500-023In-vacuum cable, 25.4 cm (10 in.)
783-500-024In-vacuum cable, 76.2 cm (30 in.)

부품 번호

비디오 콘텐츠에 대한 동의가 필요합니다
자세한 정보
