CF

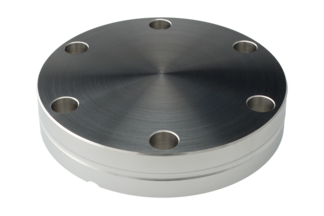

盲法兰 可旋转式不锈钢 304L

Blank-Flange-Rotatable-Stainless-Steel-304L

Product configurator

Gemini™ MxG5xx

Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Your configuration
inficon-gauge
Gemini™ MxG5xx
Flange
DN 16 ISO-KF
Switching functions
None
Electrical Connection
FCC, 8-pin
Digital Interface
None
Measurement range
1.2 - 8.68 V
Request
Personal information
Product
inficon-gauge
Gemini™ MxG5xx
Gemini™ MAG500
Your configuration has been successfully sent!

INFICON CF 优质接头按照 ISO 3669 和最新的 TS/ ISO 3669-2 标准制造。INFICON 超高真空接头设计用于压强低至 1 x 10-12 mbar 和烧烤温度高达 400°C 的应用。

好处

  • 全球物流
  • 设计和措施严格遵循国际认可的标准
  • 表面光洁度、焊缝、材料规格和清洁度均达到或超过高真空规格
  • 符合 2011/65/EU RoHS 标准

规格

TypeDimension ADimension BDimension CDimension DDimension EMaterial:
DN 16 CF7.55.818.6141.4Stainless steel 304L / 1.4306
DN 40 CF137.641381.4Stainless steel 304L / 1.4306
DN 63 CF17.512.671661.4Stainless steel 304L / 1.4306
DN 100 CF2014.31091041.4Stainless steel 304L / 1.4306
DN 160 CF2215.81601551.4Stainless steel 304L / 1.4306
DN 200 CF24.517.12062051.4Stainless steel 304L / 1.4306
DN 250 CF24.5182572561.4Stainless steel 304L / 1.4306
在此下载完整的规格

零件编号

 Part NumberDescription
DN 100 CF213-014Blanking flange DN 100 CF-R
DN 16 CF213-011Blanking flange rotatable
DN 160 CF213-015Blanking flange rotatable
DN 200 CF213-016Blanking flange rotatable DN 200 CF-R
DN 250 CF213-017Blanking flange DN 250CF-R
DN 40 CF213-012Blanking flange rotatable DN 40 CF-R
DN 63 CF213-013Balnking flange rotatable DN 63 CF-R
