ISO-F
带定位环的环型凸缘法兰
Product configurator
Gemini™ MxG5xx
Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Request
Your configuration has been successfully sent!
INFICON ISO-F 优质接头按照 ISO 1609、DIN 28404 和 Pneurop 6606 标准制造。我们的优质大直径接头是所有真空和高真空度管路应用的标准真空元件。高质量 INFICON 接头经过精心设计，通过了泄漏速率低于 1 x 10-9 mbar l/s 的测试。
好处
- 价格极具竞争力
- 全球物流
- 设计和措施严格遵循国际认可的标准
- 表面光洁度、焊缝、材料规格和清洁度均达到或超过高真空规格
- 符合 2011/65/EU RoHS 标准
规格
| 尺寸 A | 尺寸 B | 尺寸 C | |
| DN63 ISO-F | 12 mm | 95.5 mm | 130 mm |
| DN80 ISO-F | 12 mm | 110.5 mm | 145 mm |
| DN100 ISO-F | 12 mm | 130.5 mm | 165 mm |
| DN160 ISO-F | 16 mm | 180.7 mm | 225 mm |
| DN200 ISO-F | 16 mm | 240.7 mm | 285 mm |
| DN250 ISO-F | 16 mm | 290.7 mm | 335 mm |
| DN320 ISO-F | 20 mm | 370.8 mm | 425 mm |
| DN400 ISO-F | 20 mm | 450.8 mm | 510 mm |
| DN500 ISO-F | 20 mm | 550.8 mm | 610 mm |
| DN630 ISO-F | 24 mm | 691 mm | 750 mm |
| 法兰 | |||
| DN63-160 | 钢制镀镍 -/1.0831 | ||
| DN200-630 | 钢制镀镍 -/1.0037 | ||
| 卡环 | 钢制镀镍 |
| |

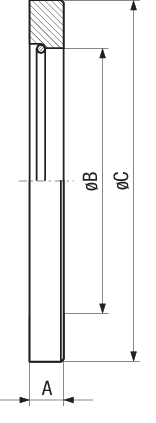

尺寸图
零件编号
| 零件编号 | 描述 |
| 212-061 | Collar flange with retaining ring, DN63 ISO-F |
| 212-081 | Collar flange with retaining ring, DN80 ISO-F |
| 212-062 | Collar flange with retaining ring, DN100 ISO-F |
| 212-063 | Collar flange with retaining ring, DN160 ISO-F |
| 212-064 | Collar flange with retaining ring, DN200 ISO-F |
| 212-065 | Collar flange with retaining ring, DN250 ISO-F |
| 212-066 | Collar flange with retaining ring, DN320 ISO-F |
| 212-067 | Collar flange with retaining ring, DN400 ISO-F |
| 212-068 | Collar flange with retaining ring, DN500 ISO-F |
| 212-069 | Collar flange with retaining ring, DN630 ISO-F |
下载
数据表
