皮拉尼真空计
PCG55x
大气压至中真空真空计

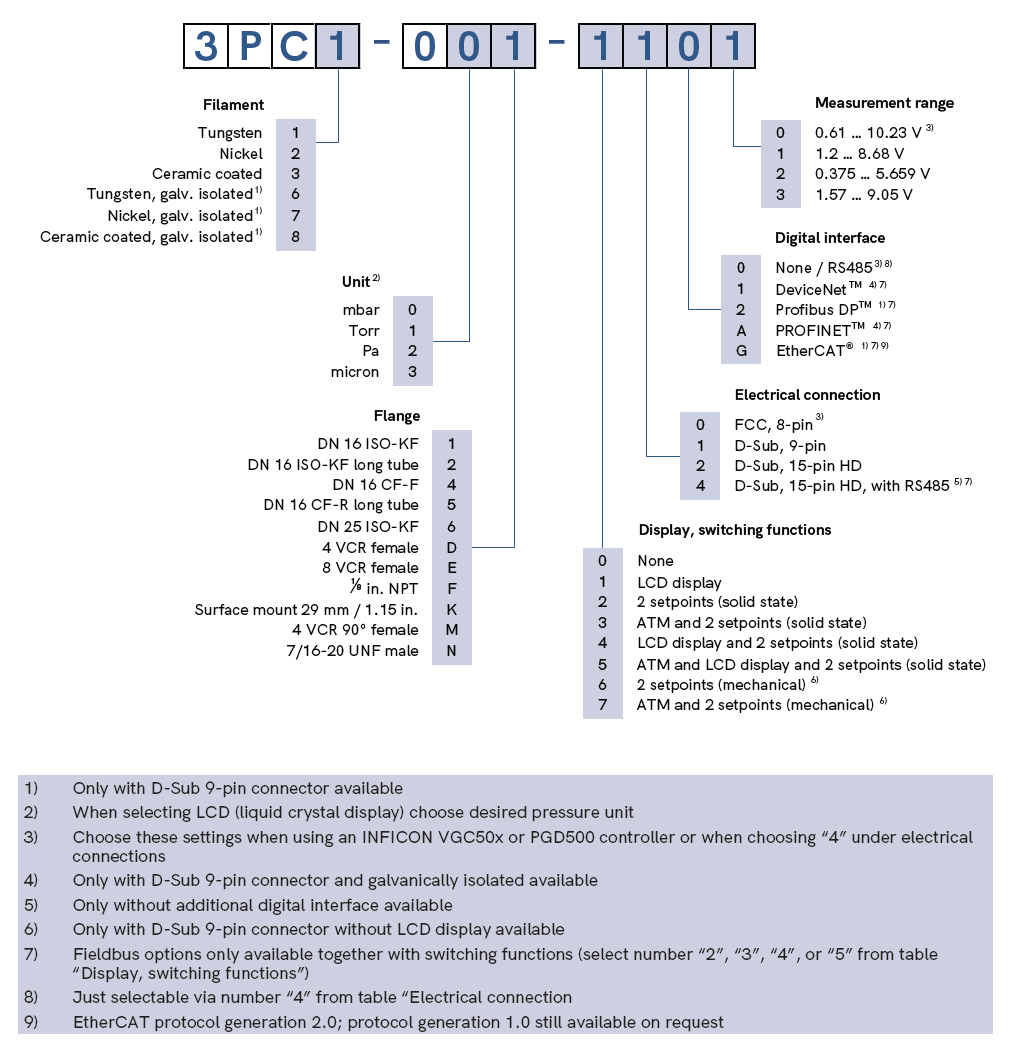

Product configurator
Gemini™ MxG5xx
Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Request
Your configuration has been successfully sent!
INFICON 皮拉尼电容膜片式测量仪 (PCG55x) 将 INFICON 皮拉尼技术与陶瓷电容膜片传感器的优点结合在单一产品中。
在 10 mbar 和大气压力之间的测量范围内,电容隔膜技术不受气体类型限制,能够提供高度精确的可靠压力测量值。PCG55x 还拥有各种功能,可针对条件苛刻的应用进行正确的产品配置。
好处
- 在 10 mbar 以上压力下不受气体类型限制 – 能够安全排放任何气体混合物
- 在大气压力下具有高度的准确性和再现性,能够进行可靠、快速的大气压力检测
- 灵活的安装方向提供自由的加工设计
- 可配备钨丝 (PCG550)、镍丝 (PCG552) 或全陶瓷涂层 (PCG554) 传感器装置用于高腐蚀性应用
- Latest EtherCAT protocol Standard ETG.5003.2080 S (R) V1.3.0
- 易于更换的即插即用式传感元件与板载校准数据 - 保证了高度再现性和低拥有成本
- 可选的输出信号,易于集成
- 可选大气开关、显示屏和数字接口
- 合规和标准:CE、EN、UL、CSA、RoHS
典型应用
- 预抽真空室
- 前级真空压力测量
- 真空系统中的安全电路
- 中度真空和低真空范围内的一般真空测量和控制
规格
PCG550 Tungsten
PCG552 Nickel
PCG554 ceramic coated
Measurement range | mbar Torr | 5×10-5 … 1500 3.8×10-5 … 1125 |
Accuracy (N2) | ||
5×10-4 … 1×10-3 mbar (N2) | % of reading | ±50 |
1×10-3 … 100 mbar (N2) | % of reading | ±15 |
100 … 950 mbar | % of reading | ±5 |
950 … 1050 mbar | % of reading | ±2.5 |
Repeatability | ||
1×10-3 … 1100 mbar (N2) | % of reading | ±2 |
Admissible temperature | ||
Operation (ambient) | °C | +10 … +50 |
Storage | °C | -20 … +65 |
Bakeout at flange | °C | ≤80 |
Bakeout at flange long tube | °C | ≤250 |
Supply voltage | V (dc) | +15 … +30 |
Setpoint relay | ||
Number of setpoints | 2 | |
Range (N2) | mbar | 5×10-5 … 1000 |
Relay contact | Relay contact | n.o., potential free |
Hysteresis | % of threshold | 10 |
Contact rating solid state relays | V (dc) A (dc) | ≤30 ≤0.3 |
Contact rating mechanical relays | V (dc) A (dc) | ≤30 ≤1 |
Switching time | ms | ≤30 |
Materials exposed to vacuum | W, Ni, NiFe, Al2O3, SnAg, stainless steel, glass |
Measurement range | mbar Torr | 5×10-5 … 1500 3.8×10-5 … 1125 |
Accuracy (N2) | ||
5×10-4 … 1×10-3 mbar (N2) | % of reading | ±50 |
1×10-3 … 100 mbar (N2) | % of reading | ±15 |
100 … 950 mbar | % of reading | ±5 |
950 … 1050 mbar | % of reading | ±2.5 |
Repeatability | ||
1×10-3 … 1100 mbar (N2) | % of reading | ±2 |
Admissible temperature | ||
Operation (ambient) | °C | +10 … +50 |
Storage | °C | -20 … +65 |
Bakeout at flange | °C | ≤80 |
Bakeout at flange long tube | °C | ≤250 |
Supply voltage | V (dc) | +15 … +30 |
Setpoint relay | ||
Number of setpoints | 2 | |
Range (N2) | mbar | 5×10-5 … 1000 |
Relay contact | Relay contact | n.o., potential free |
Hysteresis | % of threshold | 10 |
Contact rating solid state relays | V (dc) A (dc) | ≤30 ≤0.3 |
Contact rating mechanical relays | V (dc) A (dc) | ≤30 ≤1 |
Switching time | ms | ≤30 |
Materials exposed to vacuum | Ni, NiFe, Al2O3, SnAg, stainless steel, glass |
Measurement range | mbar Torr | 5×10-5 … 1500 3.8×10-5 … 1125 |
Accuracy (N2) | ||
5×10-4 … 1×10-3 mbar (N2) | % of reading | ±50 |
1×10-3 … 100 mbar (N2) | % of reading | ±15 |
100 … 950 mbar | % of reading | ±5 |
950 … 1050 mbar | % of reading | ±2.5 |
Repeatability | ||
1×10-3 … 1100 mbar (N2) | % of reading | ±2 |
Admissible temperature | ||
Operation (ambient) | °C | +10 … +50 |
Storage | °C | -20 … +65 |
Bakeout at flange | °C | ≤80 |
Bakeout at flange long tube | °C | ≤250 |
Supply voltage | V (dc) | +15 … +30 |
Setpoint relay | ||
Number of setpoints | 2 | |
Range (N2) | mbar | 5×10-5 … 1000 |
Relay contact | Relay contact | n.o., potential free |
Hysteresis | % of threshold | 10 |
Contact rating solid state relays | V (dc) A (dc) | ≤30 ≤0.3 |
Contact rating mechanical relays | V (dc) A (dc) | ≤30 ≤1 |
Switching time | ms | ≤30 |
Materials exposed to vacuum | Al2O3, stainless steel |
Accessories
Spare Parts
PCG550 Tungsten | |
Part Number | Description |
211-001 | Clamping ring DN 10-16 ISO-KF |
350-050 | Power Supply, PxG5xx,G-Cable FCC,1.8m
|
PCG552 Nickel | |
Part Number | Description |
211-001 | Clamping ring DN 10-16 ISO-KF |
350-050 | Power Supply, PxG5xx,G-Cable FCC,1.8m
|
PCG554 ceramic coated | |
Part Number | Description |
211-001 | Clamping ring DN 10-16 ISO-KF |
350-050 | Power Supply, PxG5xx,G-Cable FCC,1.8m
|
PCG550 Tungsten | |
Part Number | Description |
211-097 | Centering ring with fine filter DN 16 KF
|
PCG552 Nickel | |
Part Number | Description |
211-097 | Centering ring with fine filter DN 16 KF
|
PCG554 ceramic coated | |
Part Number | Description |
211-097 | Centering ring with fine filter DN 16 KF
|
PCG550 Tungsten | |
Part Number | Description |
303-333 | Diagnostic cable 1.9m (P3)
|
PCG552 Nickel | |
Part Number | Description |
303-333 | Diagnostic cable 1.9m (P3)
|
PCG554 ceramic coated | |
Part Number | Description |
303-333 | Diagnostic cable 1.9m (P3) |
PCG550 Tungsten | |
Part Number | Description |
357-925 | PCG550 Spare Sensor, DN16ISO-KF |
357-926 | PCG550 Spare Sensor, DN16ISO-KF, long |
357-927 | PCG550 Spare Sensor, DN16CF-F |
357-928 | PCG550 Spare Sensor, DN16CF-R, long |
357-929 | PCG550 Spare Sensor, DN25ISO-KF |
357-930 | PCG550 Spare Sensor, 1/8" NPT |
357-931 | PCG550 Spare Sensor, 8-VCR |
357-932 | PCG550 Spare Sensor, 4-VCR |
357-933 | PCG550 Spare Sensor, 7/16-20 UNF |
357-934 | PCG550 Spare Sensor, 29x29mm |
357-935 | PCG550 Spare Sensor, 4-VCR / 90°
|
PCG552 Nickel | |
Part Number | Description |
357-936 | PCG552 Spare Sensor, DN16ISO-KF |
357-937 | PCG552 Spare Sensor, DN16ISO-KF, long |
357-938 | PCG552 Spare Sensor, DN16CF-F |
357-939 | PCG552 Spare Sensor, DN16CF-R, long |
357-941 | PCG552 Spare Sensor, 1/8" NPT |
357-942 | PCG552 Spare Sensor, 8-VCR |
357-943 | PCG552 Spare Sensor, 4-VCR |
357-944 | PCG552 Spare Sensor, 7/16-20 UNF |
357-945 | PCG552 Spare Sensor, 29x29mm |
357-946 | PCG552 Spare Sensor, 4-VCR / 90°
|
PCG554 ceramic coated | |
Part Number | Description |
357-947 | PCG554 Spare Sensor, DN16ISO-KF |
357-948 | PCG554 Spare Sensor, DN16ISO-KF, long |
357-949 | PCG554 Spare Sensor, DN16CF-F |
357-950 | PCG554 Spare Sensor, DN16CF-R, long |
357-951 | PCG554 Spare Sensor, DN25ISO-KF |
357-952 | PCG554 Spare Sensor, 1/8" NPT |
357-953 | PCG554 Spare Sensor, 8-VCR |
357-954 | PCG554 Spare Sensor, 4-VCR |
357-955 | PCG554 Spare Sensor, 7/16-20 UNF |
357-956 | PCG554 Spare Sensor, 29x29mm |
357-957 | PCG554 Spare Sensor, 4-VCR / 90° |
