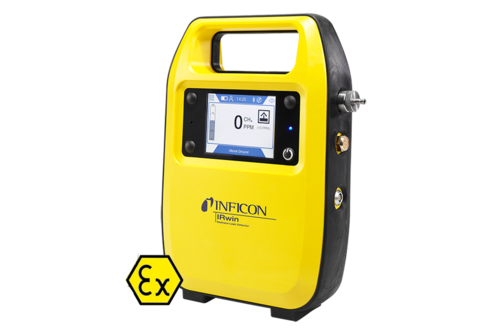

IRwin®可燃气体/甲烷泄漏检测仪是一款独具创新且操作简便的便携式燃气管网巡检和泄漏检测设备,依据多个国家和地区的技术指南(如德国燃气供水科学技术协会(DVGW)的技术标准)而研发,满足其苛刻的技术要求。IRwin® SX系列具有适用于危险区域0区的防爆功能,具备Ex II 1G和Ex ia IIC T3 Ga防爆认证并通过中国“国家级仪器仪表防爆安全监督检验站”的防爆测试和认证。

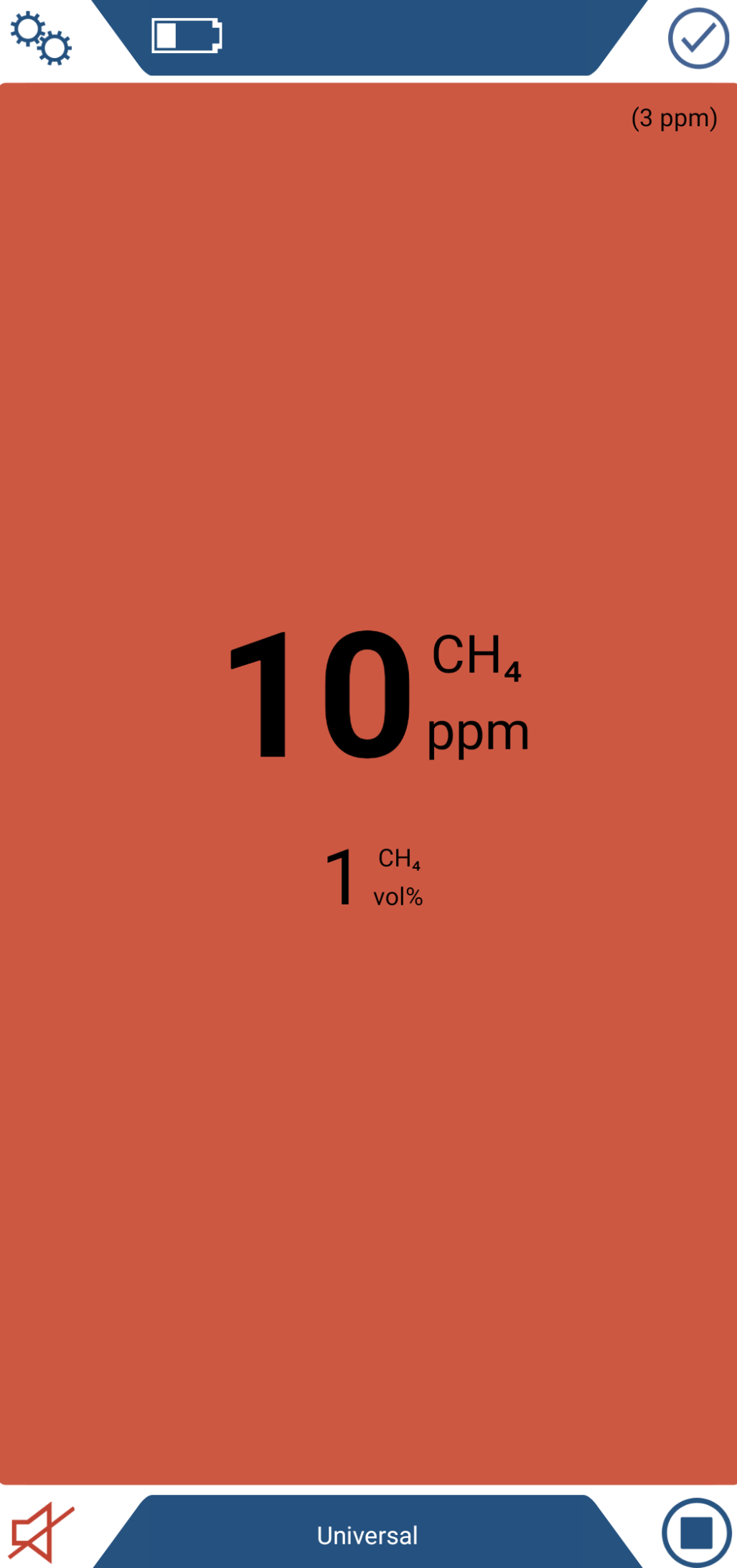

内置的专有红外传感器系统(专利申请中)具有非常短的反应时间和归零过程,该系统可有效地防止误报,确保正确快速地进行泄漏评估。专门研发的气相色谱(GC)与红外传感器结合使得我们可以快速区分沼气和天然气,在气样浓度低至1000ppm的情况下,IRwin的GC也可以快速完成乙烷浓度分析。
IRwin也可以根据德国标准DVGW G465 - 4 中巡检和检测模式的要求进行甲烷检测,如“地面巡检”模式和“打孔定位”模式,检测范围可以从1ppm至100 Vol%。
结合专门为燃气管网巡检和泄漏检测而开发的创新的探头系统,IRwin可燃气体/甲烷泄漏检测仪可以对燃气管道进行高效的检测,操作简单方便。
需要在地图上显示IRwin的巡检路线?在这里上传你的GPS文件
好处
- 采用 IR 技术进行甲烷特定测量
- 快速区分天然气与沼气
- 快速乙烷和丙烷分析
- 得益于独特红外传感器系统,设备具有高灵敏度、反应时间短且归零迅速
- 防护等级 IP54
- 坚固设备外壳,可应对各种复杂恶劣环境和条件
- 最少的打孔数量进行漏点定位
- 集成 GPS 芯片可实现可靠的位置追踪
- 无线通信系统便于数据传输
- 重量轻,易于移动,最佳的人体工学设计
- 模块化、轻量、创新附件
- 快速充电 - 充电1小时可供4小时运行
典型应用
- 天然气管道测量
- 紧急情况
技术规格
IRwin S
IRwin SX
IRwin SXT
IRwin SXG
IRwin SXGT
防爆等级 | - |
敏感性 | 1 ppm to 100% CH4 |
仪器 | 1.4 kg (3 lb.) |
防爆等级 | Ex II 1G, Ex ia IIC T3 Ga, Intrinsically safe Class I, Division 1, Groups A, B, C and D, T3 |
敏感性 | 1 ppm to 100% CH4 |
仪器 | 1.6 kg (3.5 lb.) |
防爆等级 | Ex II 1G, Ex ia IIC T3 Ga, Intrinsically safe Class I, Division 1, Groups A, B, C and D, T3 |
敏感性 | 1 ppm to 100% CH4 |
仪器 | 1.6 kg (3.5 lb.) |
防爆等级 | Ex II 1G, Ex ia IIC T3 Ga, Intrinsically safe Class I, Division 1, Groups A, B, C and D, T3 |
敏感性 | 1 ppm to 100% CH4 |
仪器 | 1.6 kg (3.5 lb.) |
防爆等级 | Ex II 1G, Ex ia IIC T3 Ga, Intrinsically safe Class I, Division 1, Groups A, B, C and D, T3 |
敏感性 | 1 ppm to 100% CH4 |
仪器 | 1.6 kg (3.5 lb.) |
订货信息
零件号
附件
备件
IRwin S | |
580-000 | IRwin S - Methane, Carbon dioxide, Ethane* (*只用于沼气分析) |
580-712 | IRwin 配件套件 |
580-240 | IRwin紧凑型套装 |
IRwin SX | |
580-010 | IRwin SX - Methane, Carbon dioxide, Ethane*, Propane**, Buthane** (*只用于沼气分析;**在防爆模式下替换甲烷) |
580-712 | IRwin 配件套件 |
580-240 | IRwin紧凑型套装 |
IRwin SXG | |
580-020 | IRwin SXG - Methane, Carbon dioxide, Ethane, Propane, Butane |
580-712 | IRwin 配件套件 |
580-240 | IRwin紧凑型套装 |
IRwin SXGT | |
580-030 | IRwin SXGT - Methane, Carbon dioxide, Ethane, Propane, Butane, Oxygen, Hydrogen Sulfide, Carbon monoxide |
580-712 | IRwin 配件套件 |
580-240 | IRwin紧凑型套装 |
IRwin SXT | |
580-015 | IRwin SXT - Methane, Carbon dioxide, Oxygen, Hydrogen Sulfide, Carbon monoxide, Ethane*, Propane**, Buthane** (*只用于沼气分析;**在防爆模式下替换甲烷) |
580-712 | IRwin 配件套件 |
580-240 | IRwin紧凑型套装 |
IRwin S | |
580-100 | Hand probe |
580-110 | Hand Probe Flexible Extension |
580-115 | Bar Hole Probe |
580-120 | Swan Neck |
580-140 | Short Rod, 600mm |
580-150 | Rod |
580-160 | Extension Rod, 150mm |
580-170 | Compact Rod, 330+330mm |
580-180 | Soft Surface Probe |
580-185 | M21 Probe |
580-190 | Sub Surface Probe |
580-210 | Mono-wheeler Carpet Probe (patent pending) |
580-211 | Carpet |
580-300 | Bell Probe |
580-301 | Bell |
580-305 | Flexi Bell |
580-405 | Harness IRwin |
580-450 | Transport Case |
581-314 | Transport Case for Compact Kit |
IRwin SX | |
580-100 | Hand probe |
580-110 | Hand Probe Flexible Extension |
580-115 | Bar Hole Probe |
580-120 | Swan Neck |
580-140 | Short Rod, 600mm |
580-150 | Rod |
580-160 | Extension Rod, 150mm |
580-170 | Compact Rod, 330+330mm |
580-180 | Soft Surface Probe |
580-185 | M21 Probe |
580-190 | Sub Surface Probe |
580-210 | Mono-wheeler Carpet Probe (patent pending) |
580-211 | Carpet |
580-300 | Bell Probe |
580-301 | Bell |
580-305 | Flexi Bell |
580-405 | Harness IRwin |
580-450 | Transport Case |
581-314 | Transport Case for Compact Kit |
IRwin SXT | |
580-100 | Hand probe |
580-110 | Hand Probe Flexible Extension |
580-115 | Bar Hole Probe |
580-120 | Swan Neck |
580-140 | Short Rod, 600mm |
580-150 | Rod |
580-160 | Extension Rod, 150mm |
580-170 | Compact Rod, 330+330mm |
580-180 | Soft Surface Probe |
580-185 | M21 Probe |
580-190 | Sub Surface Probe |
580-210 | Mono-wheeler Carpet Probe (patent pending) |
580-211 | Carpet |
580-301 | Bell |
580-305 | Flexi Bell |
580-300 | Bell Probe |
580-405 | Harness IRwin |
580-450 | Transport Case |
581-314 | Transport Case for Compact Kit |
IRwin SXG | |
580-100 | Hand probe |
580-110 | Hand Probe Flexible Extension |
580-115 | Bar Hole Probe |
580-120 | Swan Neck |
580-140 | Short Rod, 600mm |
580-150 | Rod |
580-160 | Extension Rod, 150mm |
580-170 | Compact Rod, 330+330mm |
580-180 | Soft Surface Probe |
580-185 | M21 Probe |
580-190 | Sub Surface Probe |
580-210 | Mono-wheeler Carpet Probe (patent pending) |
580-211 | Carpet |
580-300 | Bell Probe |
580-301 | Bell |
580-305 | Flexi Bell |
580-405 | Harness IRwin |
580-450 | Transport Case |
581-314 | Transport Case for Compact Kit |
IRwin SXGT | |
580-100 | Hand probe |
580-110 | Hand Probe Flexible Extension |
580-115 | Bar Hole Probe |
580-120 | Swan Neck |
580-140 | Short Rod, 600mm |
580-150 | Rod |
580-160 | Extension Rod, 150mm |
580-170 | Compact Rod, 330+330mm |
580-180 | Soft Surface Probe |
580-185 | M21 Probe |
580-190 | Sub Surface Probe |
580-210 | Mono-wheeler Carpet Probe (patent pending) |
580-211 | Carpet |
580-300 | Bell Probe |
580-301 | Bell |
580-305 | Flexi Bell |
580-405 | Harness IRwin |
580-450 | Transport Case |
581-314 | Transport Case for Compact Kit |
IRwin S | |
580-230 | On Demand Flow Regulator (ODFR) 5/8x18 UNF |
580-235 | On Demand Flow Regulator (ODFR) 7/16x28 UNEF |
580-220 | Extension Connector |
580-700 | Filter-kit |
580-604 | EX Certified IRwin Charging Adapter |
580-605 | Charger for IRwin, all models, 100-240V |
581-167 | Battery (replaceable at authorized service centers only) |
580-701 | Mat repair kit |
IRwin SX | |
580-230 | On Demand Flow Regulator (ODFR) 5/8x18 UNF |
580-235 | On Demand Flow Regulator (ODFR) 7/16x28 UNEF |
580-220 | Extension Connector |
580-700 | Filter-kit |
580-604 | EX Certified IRwin Charging Adapter |
580-605 | Charger for IRwin, all models, 100-240V |
591-361 | Charger cable for car, 12V |
581-167 | Battery (replaceable at authorized service centers only) |
580-701 | Mat repair kit |
IRwin SXT | |
580-230 | On Demand Flow Regulator (ODFR) 5/8x18 UNF |
580-235 | On Demand Flow Regulator (ODFR) 7/16x28 UNEF |
580-220 | Extension Connector |
580-700 | Filter-kit |
580-604 | EX Certified IRwin Charging Adapter |
580-605 | Charger for IRwin, all models, 100-240V |
591-361 | Charger cable for car, 12V |
581-167 | Battery (replaceable at authorized service centers only) |
580-701 | Mat repair kit |
IRwin SXG | |
580-230 | On Demand Flow Regulator (ODFR) 5/8x18 UNF |
580-235 | On Demand Flow Regulator (ODFR) 7/16x28 UNEF |
580-220 | Extension Connector |
580-700 | Filter-kit |
580-604 | EX Certified IRwin Charging Adapter |
580-605 | Charger for IRwin, all models, 100-240V |
591-361 | Charger cable for car, 12V |
581-167 | Battery (replaceable at authorized service centers only) |
580-701 | Mat repair kit |
IRwin SXGT | |
580-230 | On Demand Flow Regulator (ODFR) 5/8x18 UNF |
580-235 | On Demand Flow Regulator (ODFR) 7/16x28 UNEF |
580-220 | Extension Connector |
580-700 | Filter-kit |
580-604 | EX Certified IRwin Charging Adapter |
580-605 | Charger for IRwin, all models, 100-240V |
591-361 | Charger cable for car, 12V |
581-167 | Battery (replaceable at authorized service centers only) |
580-701 | Mat repair kit |
