制冷剂泄漏检测仪和便携式监测仪

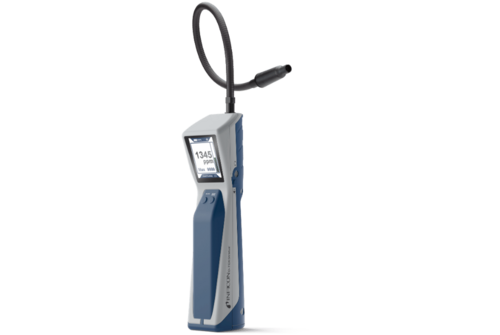

D-TEK STRATUS®
在任何时候都能找到利润流失的泄漏点
在任何时候都能找到利润流失的泄漏点
D-TEK Stratus将INFICON D-TEK泄漏检测仪的优越泄漏检测功能与便携式监测仪的云检测功能结合在一个手持设备中。 使用大型，易于阅读的LCD显示屏快速找到包含泄漏的区域，然后用一台仪器确定泄漏点！ D-TEK Stratus是制冷剂泄漏检测的利器。
检测制冷剂和二氧化碳
D-TEK Stratus设计兼顾了多功能性。通过便捷的传感器切换实现对制冷剂或二氧化碳的检测。
功能
- 自动与手动归零模式
- 附带坚固手提箱
- 检测所有 CFC、HCFC、HFC 和 HFO类制冷剂
- 两年更换保修服务
- 兼容二氧化碳或易燃制冷剂的可选传感器
优势
- ppm 读数的创新云狩猎模式有助于比从前更快定位漏点
- 云狩猎和定位模式如同将两套泄漏检测仪合而为一
全新重新设计的红外传感器
- 业内领先的传感器使用寿命
- 方便现场更换
新锂离子电池
- 快速充电功能
- 方便现场更换
设计符合人体工学舒适度
典型应用
- 工业空调和制冷
规格
| Includes | D-TEK Stratus Infrared sensor Lithium ion battery Spare filters AC wall charger DC car charger Extra-long probe Carrying case Earbuds | |
| Compatible refrigerants | ||
| Refrigerant sensor | Refrigerant sensor | R22, R32, R134a, R404a, R407c, R410a, R422b, R448a, R449a, R452a, R452b, R507 (AZ50), R1234yf, ammonia, SF6, HFE and more
|
| CO2 sensor | CO2 sensor | R744 (CO2)
|
| Flammable refrigerant sensor | Flammable refrigerant sensor | R290, R600a, R441a
|
| Sensitivity per EN14624 | ||
| R744 (CO2) | R744 (CO2) | 2 g/a (0.07 oz./yr)1 |
| R1234yf | R1234yf | 0.5 g/a (0.02 oz./yr) |
| Ammonia | Ammonia | 3 g/a (0.1 oz./yr) |
| R290 | R290 | 5 g/a (0.2 oz./yr)2 |
| R134a | R134a | 1 g/a (0.04 oz./yr)
|
| Power source | Lithium ion battery (rechargeable) Micro USB (can operate while charging) | |
| Certifications | CE EN14624:2012 A2L Certified
| |
| 1Requires 724-701-G2 CO2 Sensor 2Requires 724-701-G3 Flammable Refrigerant Sensor | ||
Part number
Accessories
Consumables
Spare Parts
| 724-202-G1 | D-TEK Stratus, North America |
| 724-204-G1 | D-TEK Stratus (includes CO2 sensor only), North America |
| 724-202-G11 | D-TEK Stratus, Europe |
| 724-204-G11 | D-TEK Stratus (includes CO2 sensor only), Europe |
| 724-202-CN41 | D-TEK Stratus, Asia |
| 712-707-G1 | Filter cartridges, set of 5 |
| 721-605-G1 | Car Charger |
| 721-606-G1 | Wall Charger |
| 721-607-G1 | Earbuds |
| 703-080-G10 | TEK-Check R134a Reference Leak |
| 721-702-G1 | Battery |
| 721-610-G1 | Charging Cradle |
| 721-604-G1 | Battery/Charging Cradle Bundle |
| 724-701-G1 | Refrigerant Sensor (Detects CFCs, HCFCs, HFCs, HFOs, and blends (including A2Ls)) |
| 724-701-G2 | CO2 Sensor |
| 724-701-G3 | Flammable Refrigerant Sensor (Detects R290, R600a, and R441a) |
| 724-701-G1 | Refrigerant Sensor (Detects CFCs, HCFCs, HFCs, HFOs, and blends (including A2Ls)) |
| 724-701-G2 | CO2 Sensor |
| 712-707-G1 | Filter cartridges, set of 5 |
| 712-707-G1 | Filter cartridges, set of 5 |
| 724-705-G1 | D-TEK 3/Stratus replacement battery door |
| 721-605-G1 | Car charger |
| 721-606-G1 | Wall charger |
| 712-705-G1 | Replacement probe cap |
| 724-700-G1 | Carrying case, D-TEK Stratus |
| 724-703-G1 | Replacement probe |
